0.90m
0.72m
0.57m
B
O
C
0.42m
LOAD = 120 KG MAX
38.50deg
E
A
0.29m
0.34m
\text{?}.
F
0.95m
C
A
D

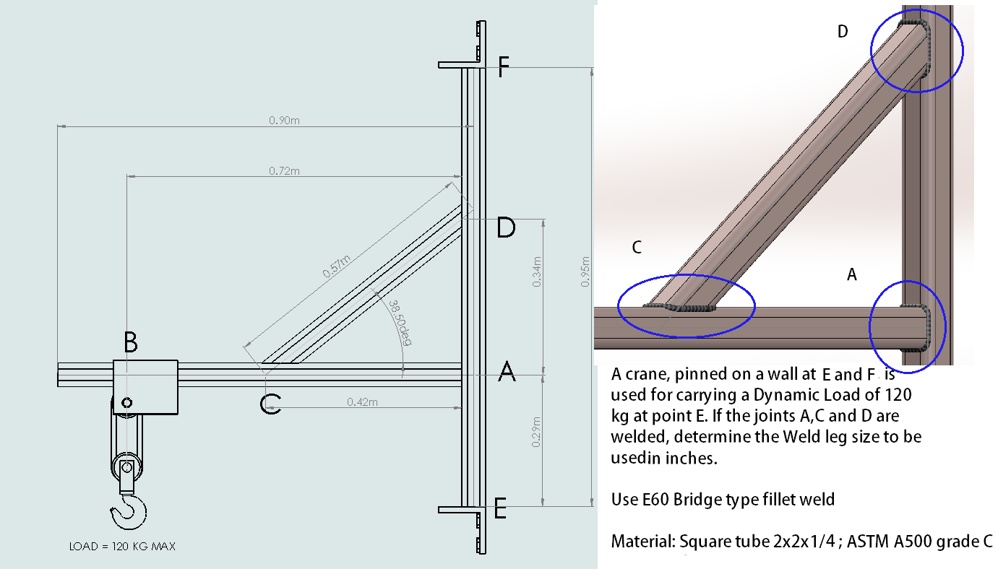

A crane, pinned on a wall at E and F. is
used for carrying a Dynamic Load of 120
kg at point E. If the joints A,C and D are
welded, determine the Weld leg size to be
usedin inches.
Use E60 Bridge type fillet weld
Material: Square tube 2x2x1/4; ASTM A500 grade C
