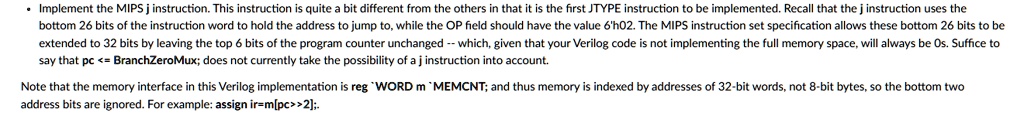

Implement the MIPS j instruction. This instruction is quite a bit different from the others in that it is the first JTYPE instruction to be implemented. Recall that the j instruction uses the
bottom 26 bits of the instruction word to hold the address to jump to, while the OP field should have the value 6'h02. The MIPS instruction set specification allows these bottom 26 bits to be
extended to 32 bits by leaving the top 6 bits of the program counter unchanged -- which, given that your Verilog code is not implementing the full memory space, will always be 0s. Suffice to
say that pc <= BranchZeroMux; does not currently take the possibility of a j instruction into account.
Note that the memory interface in this Verilog implementation is reg `WORD m `MEMCNT; and thus memory is indexed by addresses of 32-bit words, not 8-bit bytes, so the bottom two
address bits are ignored. For example: assign ir=m[pc>>2];.
