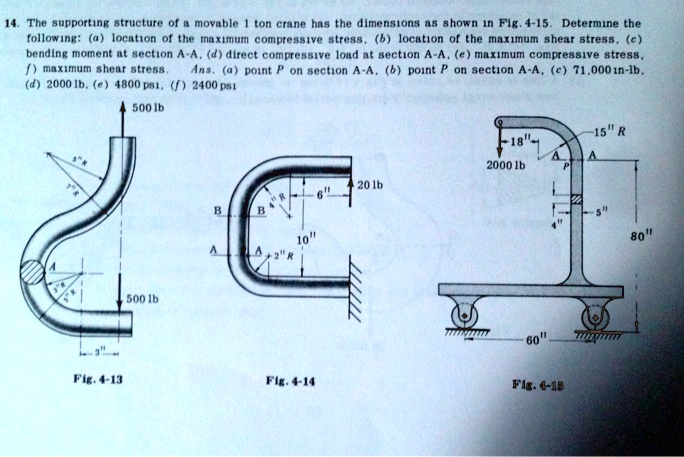

14. The supporting structure of a movable 1 ton crane has the dimensions as shown in Fig. 4-15. Determine the
following: (a) location of the maximum compressive stress. (b) location of the maximum shear stress, (c)
bending moment at section A-A, (d) direct compressive load at section A-A, (e) maximum compressive stress,
f) maximum shear stress. Ans. (a) point P on section A-A. (b) point P on section A-A, (c) 71,000 in-lb.
(d) 2000 lb. (e) 4800 ps1, (f) 2400 ps1
