Question 1

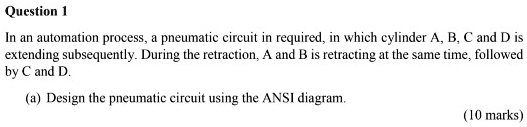

In an automation process, a pneumatic circuit in required, in which cylinder A, B, C and D is
extending subsequently. During the retraction, A and B is retracting at the same time, followed
by C and D.
(a) Design the pneumatic circuit using the ANSI diagram.
(10 marks)
