(1 point)

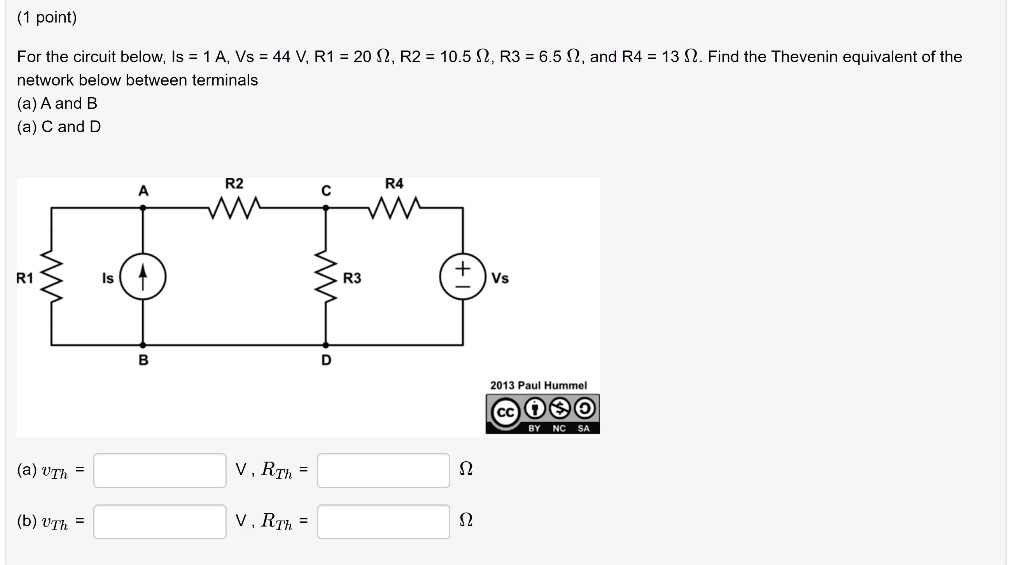

For the circuit below, Is = 1 A, Vs = 44 V, R1 = 20 $\Omega$, R2 = 10.5 $\Omega$, R3 = 6.5 $\Omega$, and R4 = 13 $\Omega$. Find the Thevenin equivalent of the
network below between terminals
(a) A and B
(a) C and D
R1
Is
R2
R4
A
C
+
R3
Vs
B
D
2013 Paul Hummel
CC
BY NC SA
(a) $V_{Th}$ = ____ V, $R_{Th}$ = ____ $\Omega$
(b) $V_{Th}$ = ____ V, $R_{Th}$ = ____ $\Omega$
