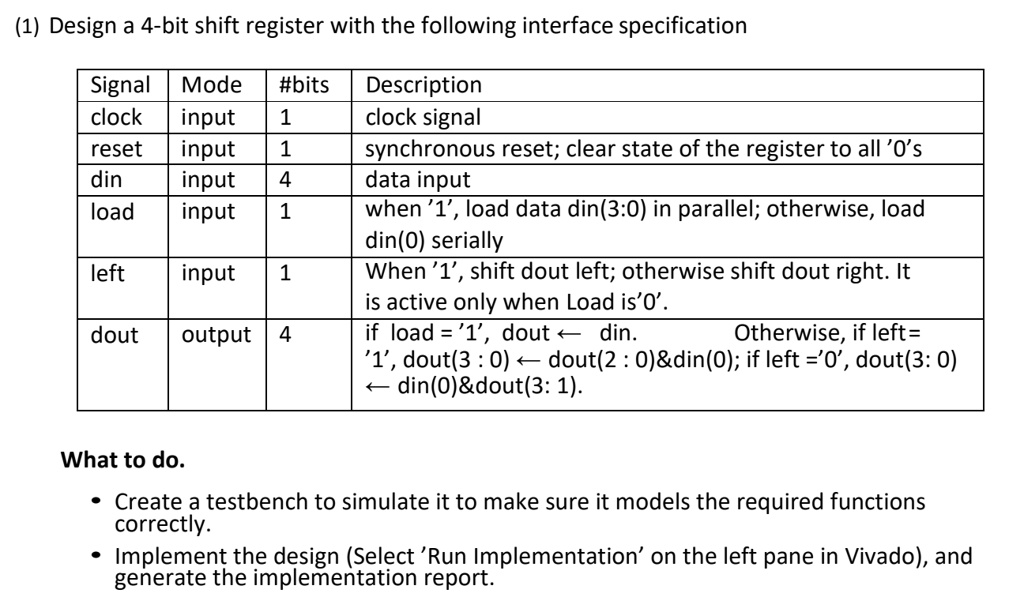

(1) Design a 4-bit shift register with the following interface specification
Signal Mode #bits Description
clock input 1 clock signal
reset input 1 synchronous reset; clear state of the register to all '0's
din input 4 data input
load input 1 when '1', load data din(3:0) in parallel; otherwise, load
din(0) serially
left input 1 When '1', shift dout left; otherwise shift dout right. It
is active only when Load is '0'.
dout output 4 if load = '1', dout ? din.
Otherwise, if left = '1', dout(3: 0) ? dout(2: 0)&din(0); if left = '0', dout(3: 0)
? din(0)&dout(3: 1).
What to do.
• Create a testbench to simulate it to make sure it models the required functions
correctly.
• Implement the design (Select 'Run Implementation' on the left pane in Vivado), and
generate the implementation report.
