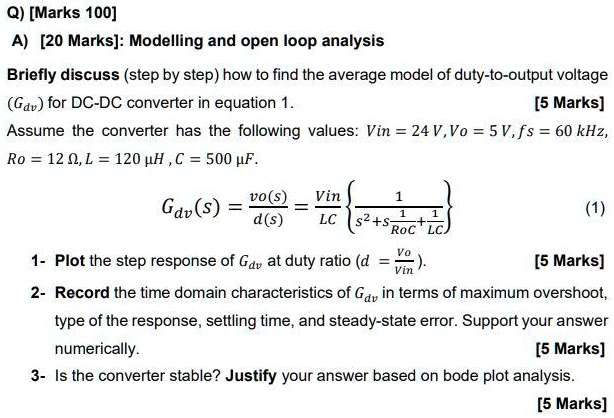

Q) [Marks 100]
A) [20 Marks]: Modelling and open loop analysis
Briefly discuss (step by step) how to find the average model of duty-to-output voltage
($G_{dv}$) for DC-DC converter in equation 1.
[5 Marks]
Assume the converter has the following values: $V_{in} = 24$ V, $V_o = 5$ V, $f_s = 60$ kHz,
$R_o = 12$ ?, $L = 120$ ?H, $C = 500$ ?F.
$\frac{v_o(s)}{d(s)} = \frac{V_{in}}{LC} \left\{\frac{1}{s^2 + s\left(\frac{1}{R_o C} + \frac{1}{LC}\right)}\right\}$ (1)
1- Plot the step response of $G_{dv}$ at duty ratio ($d = \frac{V_o}{V_{in}}$).
[5 Marks]
2- Record the time domain characteristics of $G_{dv}$ in terms of maximum overshoot,
type of the response, settling time, and steady-state error. Support your answer
numerically.
[5 Marks]
3- Is the converter stable? Justify your answer based on bode plot analysis.
[5 Marks]
