Assuming that you are using a potentiometer with a maximum resistance of R_(AC) = 100 kΩ, which is set to produce an output voltage of V_(out) = 4.00V from an input voltage of V_(in) = 5.2V, determine the resistance between points BC.
Express your answer in units of kΩ to one decimal point.

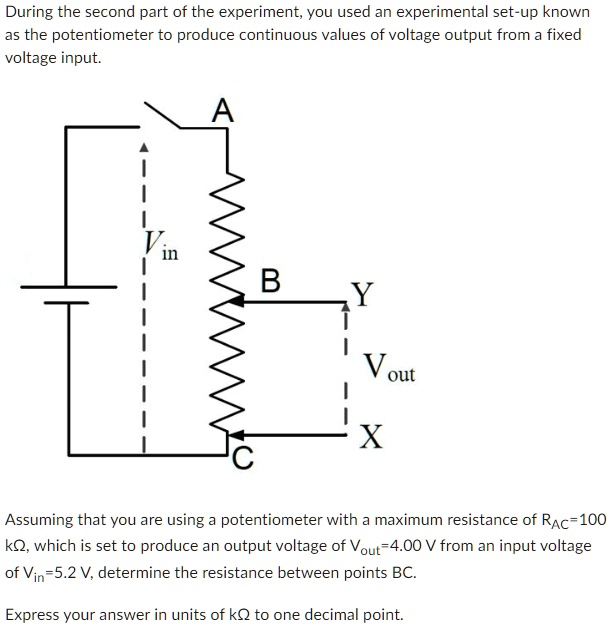

During the second part of the experiment, you used an experimental set-up known as the potentiometer to produce continuous values of voltage output from a fixed voltage input.
A
A -
1
V. in
B
- -
1 - -
-
X
-
Assuming that you are using a potentiometer with a maximum resistance of R_(AC) = 100 kΩ, which is set to produce an output voltage of V_(out) = 4.00V from an input voltage of V_(in) = 5.2V, determine the resistance between points BC.
Express your answer in units of k to one decimal point.
