3
2
3
2
10

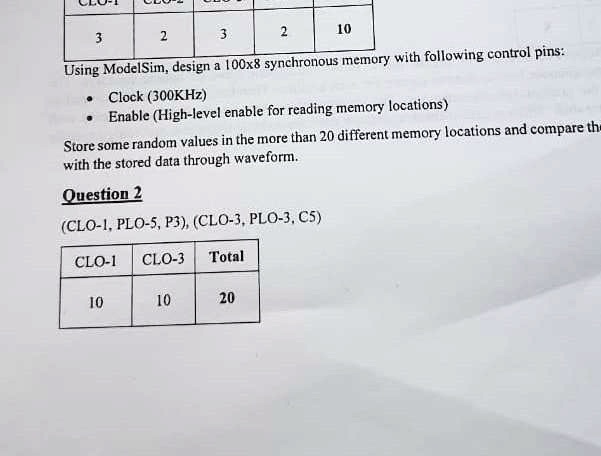

Using ModelSim, design a 100x8 synchronous memory with following control pins:
• Clock (300KHz)
• Enable (High-level enable for reading memory locations)
Store some random values in the more than 20 different memory locations and compare the
with the stored data through waveform.
Question 2
(CLO-1, PLO-5, P3), (CLO-3, PLO-3, C5)
CLO-1 CLO-3 Total
10 10 20
