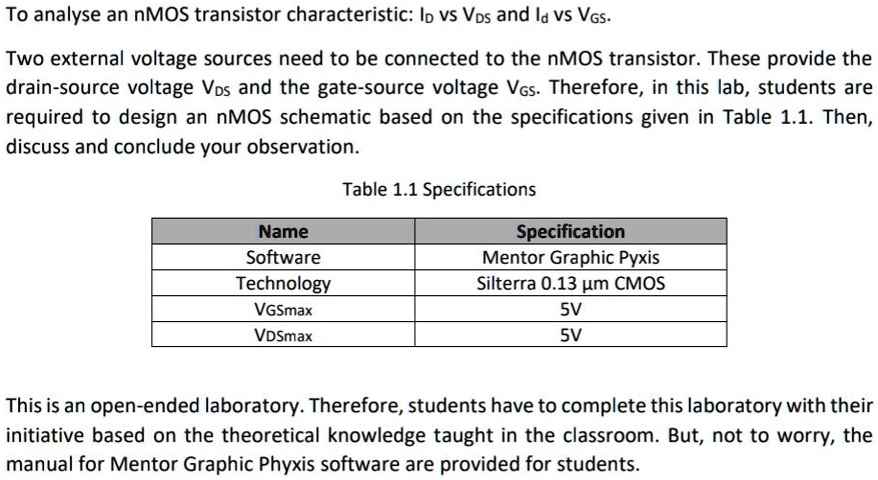

To analyse an nMOS transistor characteristic: I\textsubscript{D} vs V\textsubscript{DS} and I\textsubscript{d} vs V\textsubscript{GS}.
Two external voltage sources need to be connected to the nMOS transistor. These provide the
drain-source voltage V\textsubscript{DS} and the gate-source voltage V\textsubscript{GS}. Therefore, in this lab, students are
required to design an nMOS schematic based on the specifications given in Table 1.1. Then,
discuss and conclude your observation.
Table 1.1 Specifications
Name Specification
Software Mentor Graphic Pyxis
Technology Silterra 0.13 µm CMOS
V\textsubscript{GS}max 5V
V\textsubscript{DS}max 5V
This is an open-ended laboratory. Therefore, students have to complete this laboratory with their
initiative based on the theoretical knowledge taught in the classroom. But, not to worry, the
manual for Mentor Graphic Phyxis software are provided for students.
