1) Based on figure 4.2 and assuming that R = 10??. Calculate the theoretical value of $R_{xy}$ and $R_{ab}$.
\frac{R}{3}
3R
R
b
R
d
R

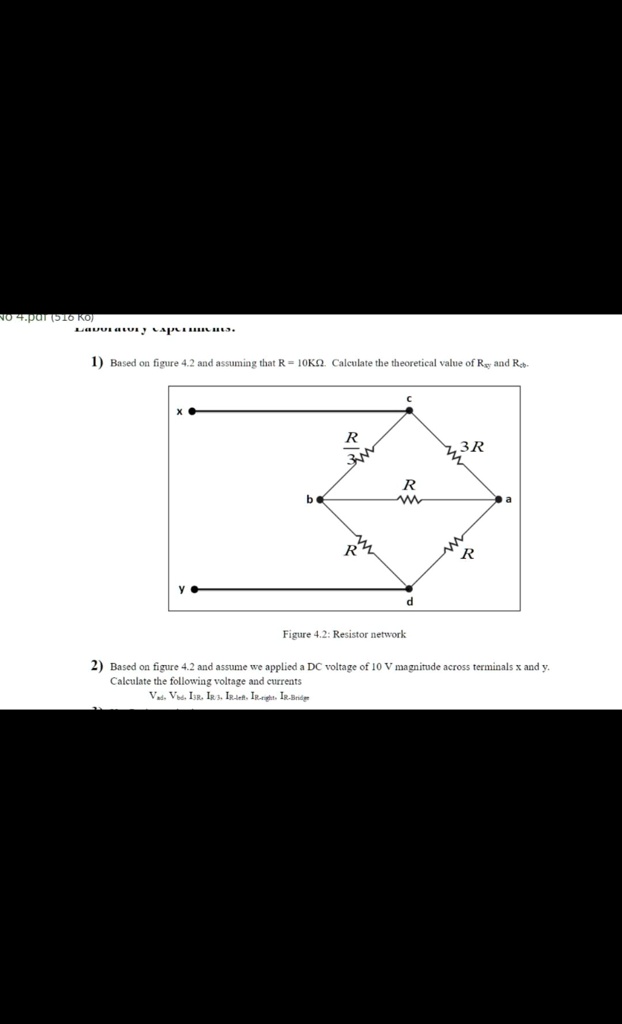

Figure 4.2: Resistor network
2) Based on figure 4.2 and assume we applied a DC voltage of 10 V magnitude across terminals x and y.
Calculate the following voltage and currents
$V_{ad}$, $V_{bd}$, $I_{3R}$, $I_{R/3}$, $I_{R-left}$, $I_{R-right}$, $I_{R-Bridge}$
