Part 2: (40 points)

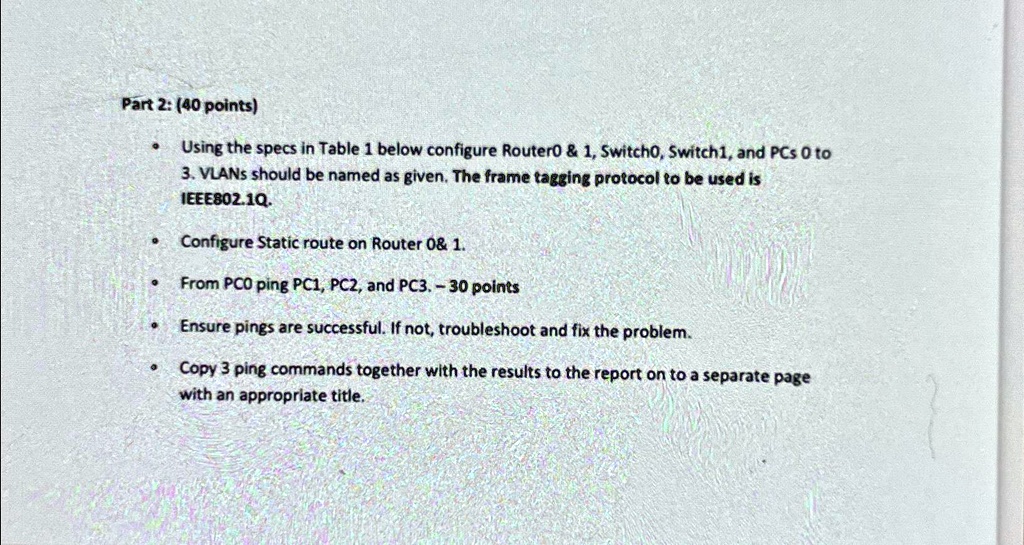

Using the specs in Table 1 below, configure Router 0 & 1, Switch 0, Switch 1, and PCs 0 to 3. VLANs should be named as given. The frame tagging protocol to be used is IEEE 802.1Q.
Configure static routes on Router 0 & 1.
From PC 0, ping PC 1, PC 2, and PC 3. -30 points
Ensure pings are successful. If not, troubleshoot and fix the problem.
Copy 3 ping commands together with the results to the report on a separate page with an appropriate title.
Part 2: (40 points)
Using the specs in Table 1 below, configure Router 0 & 1, Switch 0, Switch 1, and PCs 0 to 3. VLANs should be named as given. The frame tagging protocol to be used is IEEE 802.1Q.
Configure static routes on Router 0 & 1.
From PC 0, ping PC 1, PC 2, and PC 3. -30 points
Ensure pings are successful. If not, troubleshoot and fix the problem. Copy 3 ping commands together with the results to the report on a separate page with an appropriate title.
