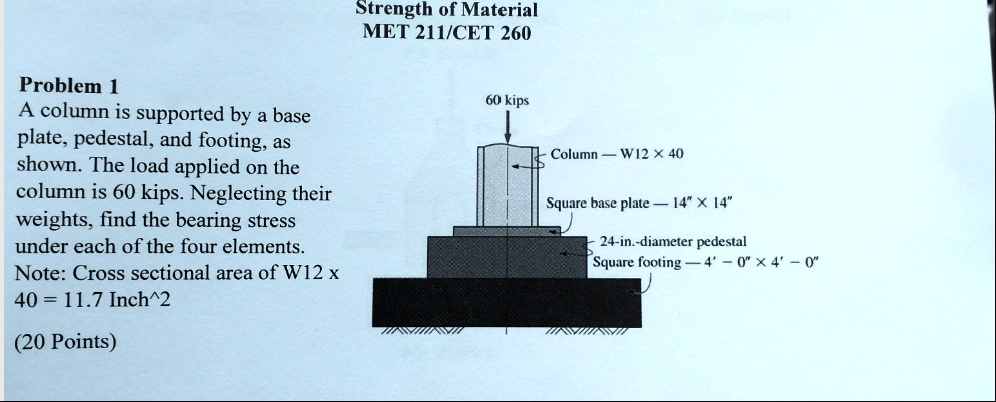

Problem 1
A column is supported by a base
plate, pedestal, and footing, as
shown. The load applied on the
column is 60 kips. Neglecting their
weights, find the bearing stress
under each of the four elements.
Note: Cross sectional area of W12 x
40 = 11.7 Inch^2
(20 Points)
Strength of Material
MET 211/CET 260
60 kips
Column -- W12 \times 40
Square base plate -- 14" \times 14"
24-in.-diameter pedestal
Square footing -- 4' 0" \times 4' 0"
