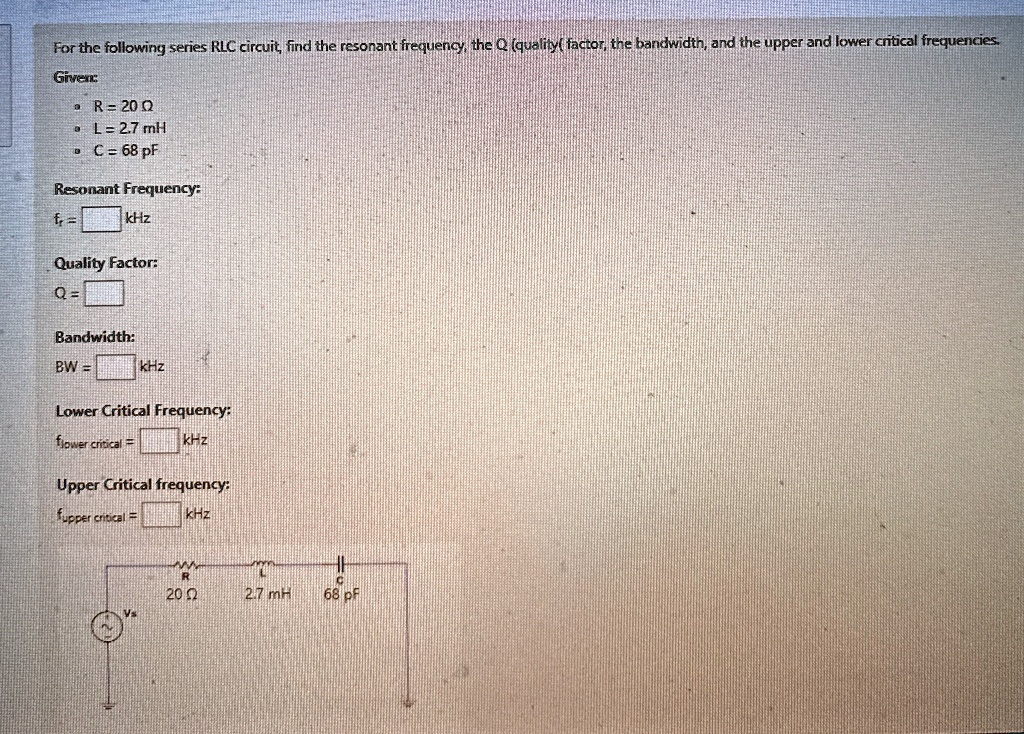

For the following series RLC circuit, find the resonant frequency, the Q (quality(factor, the bandwidth, and the upper and lower critical frequencies.
Givenc
R = 20 $\Omega$
• L = 2.7 mH
C = 68 pF
Resonant Frequency:
f= kHz
Quality Factor:
Q=
Bandwidth:
BW = kHz
Lower Critical Frequency:
flower critical = kHz
Upper Critical frequency:
fupper critical = kHz
20 $\Omega$
2.7 mH
68 DF
Vs
