What is the distance between the center of circle A and the corner at B?

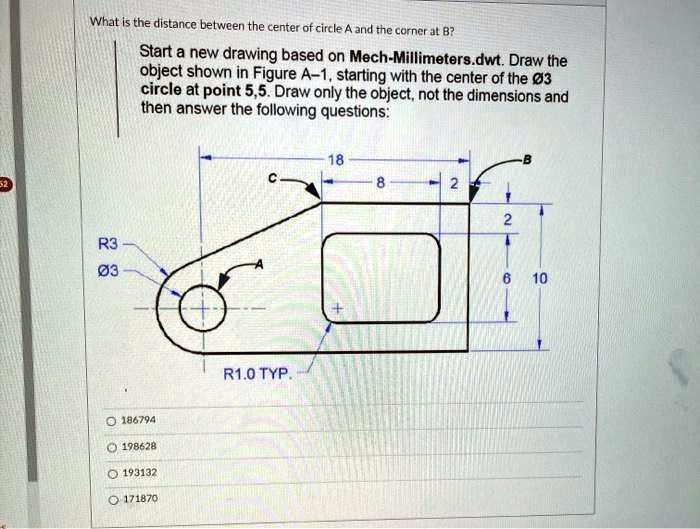

Start a new drawing based on Mech-Millimeters.dwt. Draw the
object shown in Figure A-1, starting with the center of the Ø3
circle at point 5,5. Draw only the object, not the dimensions and
then answer the following questions:
R3
Ø3
186794
198628
193132
171870
18
B
C
8
2
2
R1.0 TYP.
6
10
