5.
[15 Marks]

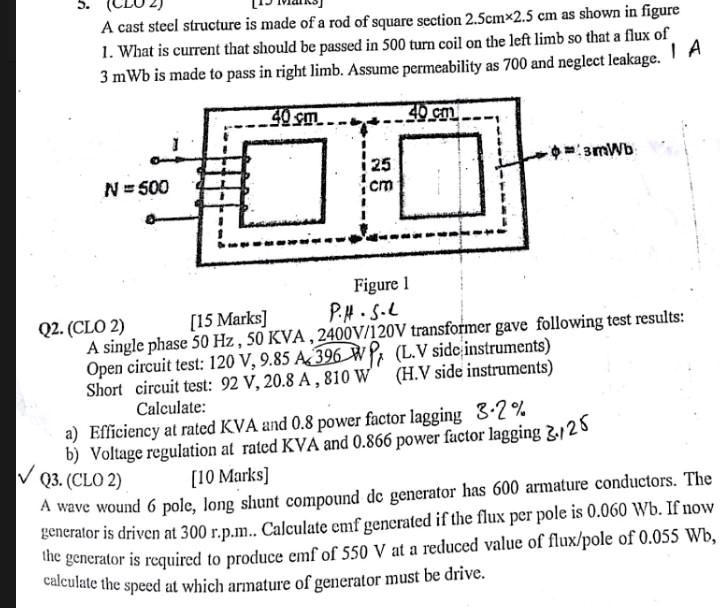

A cast steel structure is made of a rod of square section 2.5cm×2.5 cm as shown in figure
1. What is current that should be passed in 500 turn coil on the left limb so that a flux of
3 mWb is made to pass in right limb. Assume permeability as 700 and neglect leakage. I A
N=500
40.sm
40.cm
25
cm
3mWb
Figure 1
Q2. (CLO 2)
[15 Marks]
P.H-S-L
A single phase 50 Hz, 50 KVA, 2400V/120V transformer gave following test results:
Open circuit test: 120 V, 9.85 A, 396 $W_1$
(L.V side instruments)
Short circuit test: 92 V, 20.8 A, 810 W
(H.V side instruments)
Calculate:
a) Efficiency at rated KVA and 0.8 power factor lagging 3.2%
b) Voltage regulation at rated KVA and 0.866 power factor lagging 3.25
? Q3. (CLO 2)
[10 Marks]
A wave wound 6 pole, long shunt compound dc generator has 600 armature conductors. The
generator is driven at 300 r.p.m.. Calculate emf generated if the flux per pole is 0.060 Wb. If now
the generator is required to produce emf of 550 V at a reduced value of flux/pole of 0.055 Wb,
calculate the speed at which armature of generator must be drive.
