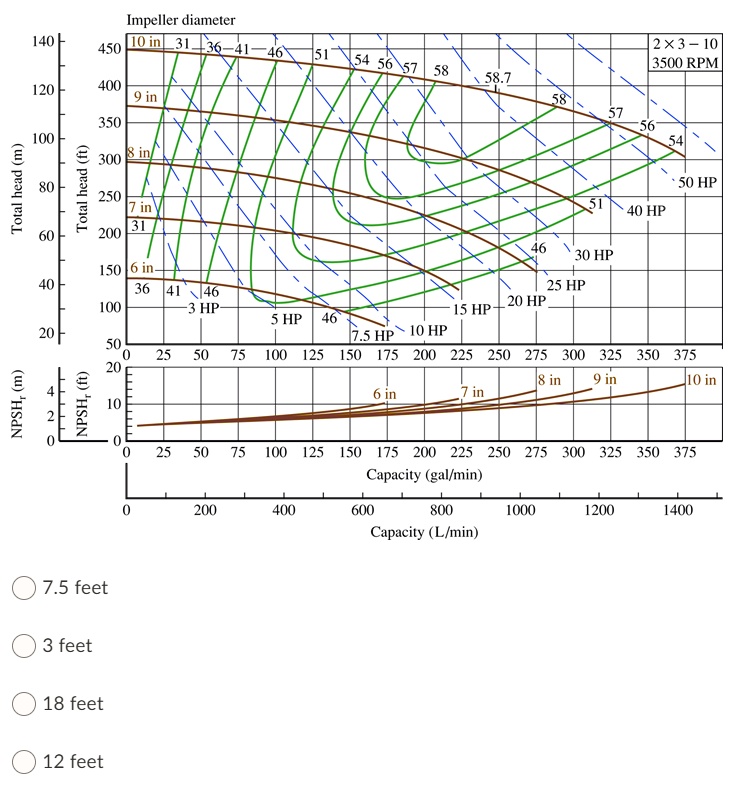

For the 2x3-10 centrifugal pump performance curve shown in the Figure, what is the required NPSH for the 8-inch impeller pump at its maximum efficiency?
Impeller diameter: 10 in
RPM: 3500
Total head (m): 80
HP: 50, 40, 30, 25, 20, 15, 5, 7.5, 10
NPSH (m): 20, 4
Capacity (gal/min): 0, 200, 400, 600, 800, 1000, 1200, 1400
NPSH (ft): 7.5, 3, 18, 12
