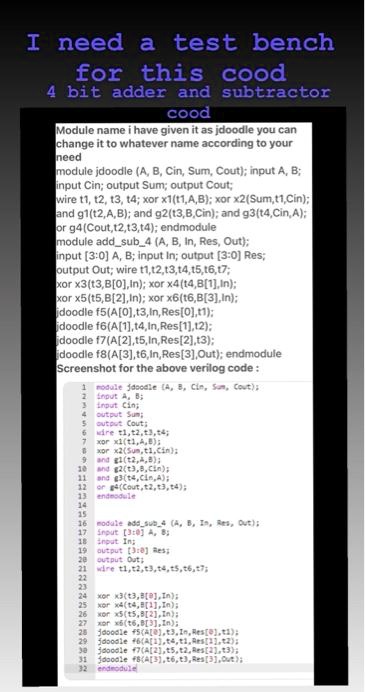

I need a test bench for this code.
I need a test bench
for this code.
4-bit adder and subtractor
code
Module name I have given it as jdoodle. You can change it to whatever name according to your need.
module jdoodle (A, B, Cin, Sum, Cout);
input A, B;
input Cin;
output Sum;
output Cout;
wire t1, t2, t3, t4;
xor x1 (t1, A, B);
xor x2 (Sum, t1, Cin);
and g1 (t2, A, B);
and g2 (t3, B, Cin);
and g3 (t4, Cin, A);
or g4 (Cout, t2, t3, t4);
endmodule
module add_sub_4 (A, B, In, Res, Out);
input [3:0] A, B;
input In;
output [3:0] Res;
output Out;
wire t1, t2, t3, t4, t5, t6, t7;
xor x3 (t3, B[0], In);
xor x4 (t4, B[1], In);
xor x5 (t5, B[2], In);
xor x6 (t6, B[3], In);
doodle f5 (A[0], t3, In, Res[0], t1);
doodle f6 (A[1], t4, In, Res[1], t2);
doodle f7 (A[2], t5, In, Res[2], t3);
doodle f8 (A[3], t6, In, Res[3], Out);
endmodule
Screenshot for the above Verilog code:
module doodle (A, B, Cin, Sum, Cout);
input A, B;
input Cin;
output Sum;
wire t1, t2, t3, t4;
xor x1 (t1, A);
xor x2 (Sum, t1, Cin);
and g1 (t2, A, B);
and g2 (t3, B, Cin);
and g3 (t4, Cin, A);
or g4 (Cout, t2, t3, t4);
endmodule
module add_sub (A, In, Res, Out);
input [3:0] A;
input In;
output [3:0] Res;
output Out;
wire t1, t2, t3, t4, t5, t6, t7;
xor x3 (t3, A[0], In);
xor x4 (t4, A[1], In);
xor x5 (t5, A[2], In);
xor x6 (t6, A[3], In);
doodle f5 (A[0], t3, In, Res[0], t1);
doodle f6 (A[1], t4, In, Res[1], t2);
doodle f7 (A[2], t5, In, Res[2], t3);
doodle f8 (A[3], t6, In, Res[3], Out);
endmodule
