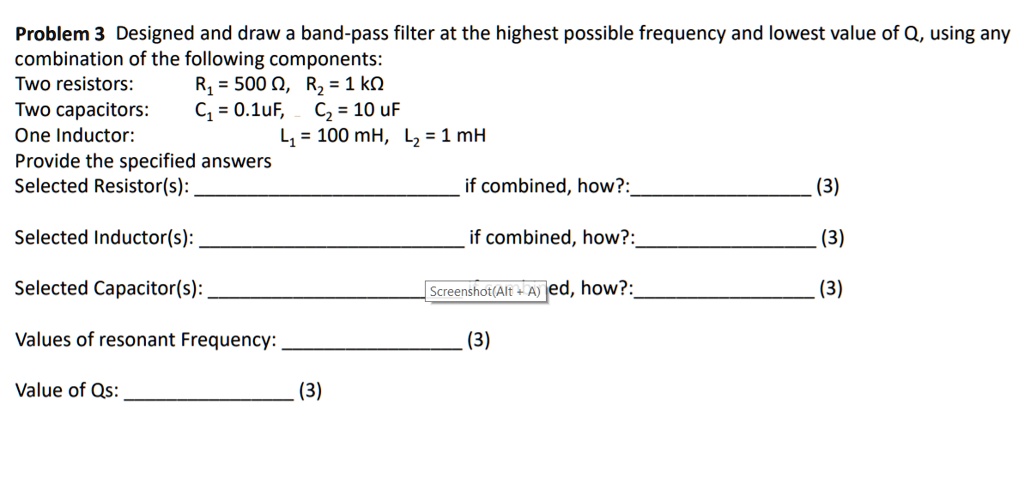

Problem 3 Designed and draw a band-pass filter at the highest possible frequency and lowest value of Q, using any combination of the following components:
Two resistors:
$R_1 = 500 \Omega$, $R_2 = 1 k\Omega$
Two capacitors:
$C_1 = 0.1 \mu F$, $C_2 = 10 \mu F$
One Inductor:
$L_1 = 100 mH$, $L_2 = 1 mH$
Provide the specified answers
Selected Resistor(s):
if combined, how?:
(3)
Selected Inductor(s):
if combined, how?:
(3)
Selected Capacitor(s):
ed, how?:
(3)
Values of resonant Frequency:
(3)
Value of Qs:
(3)
