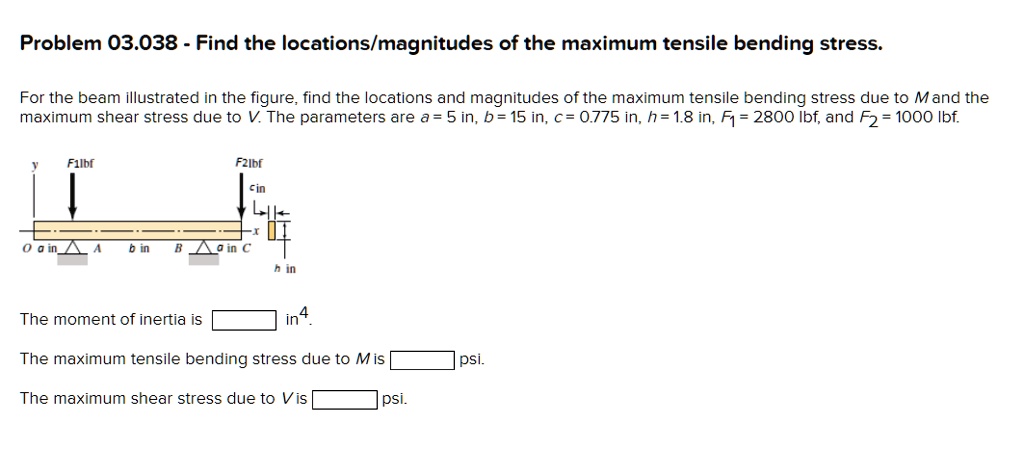

Problem 03.038 - Find the locations/magnitudes of the maximum tensile bending stress.
For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M and the
maximum shear stress due to V. The parameters are $a = 5$ in, $b = 15$ in, $c = 0.775$ in, $h = 1.8$ in, $F_1 = 2800$ lbf, and $F_2 = 1000$ lbf.
F1lbf
F2lbf
cin
O a in A b in B c in C
h in
The moment of inertia is in$^4$.
The maximum tensile bending stress due to M is psi.
The maximum shear stress due to V is psi.
