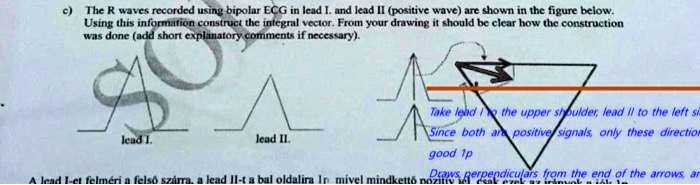

c) The R waves recorded using bipolar ECG in lead I. and lead II (positive wave) are shown in the figure below.
Using this information construct the integral vector. From your drawing it should be clear how the construction
was done (add short explanatory comments if necessary).
lead I.
lead II.
Take lead I to the upper shoulder, lead II to the left si
Since both are positive signals, only these direction
good 1p
Draws perpendiculars from the end of the arrows, ar
A lead I-et felméri a fels? szárra, a lead II-t a bal oldalira. Mivel mindkett? pozitÃv jel, csak ezek irányából
