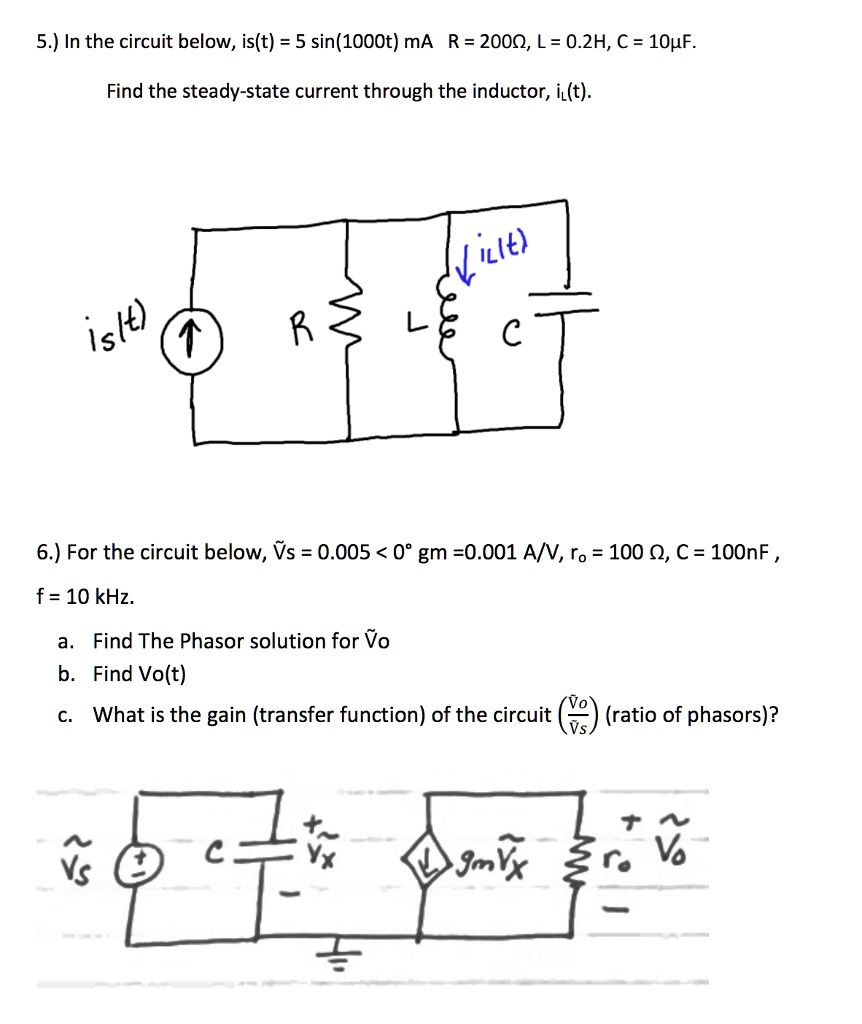

5.) In the circuit below, is(t) = 5 sin(1000t) mA, R = 200 Ω, L = 0.2 H, C = 10 μF.
Find the steady-state current through the inductor, iL(t).
iL(t)
6.) For the circuit below, Vs = 0.005 < 0°, gm = 0.001 A/V, r = 100 Ω, C = 100 nF, f = 10 kHz.
a. Find the phasor solution for Vo.
b. Find Vo(t).
c. What is the gain (transfer function) of the circuit (ratio of phasors)?
