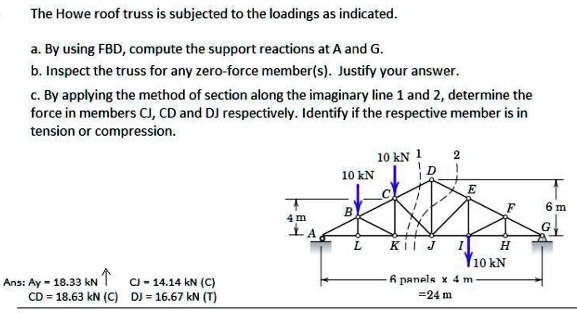

The Howe roof truss is subjected to the loadings as indicated.
a. By using FBD, compute the support reactions at A and G.
b. Inspect the truss for any zero-force member(s). Justify your answer.
c. By applying the method of section along the imaginary line 1 and 2, determine the
force in members CJ, CD and DJ respectively. Identify if the respective member is in
tension or compression.
Ans: Ay = 18.33 kN
CD = 18.63 kN (C)
CJ = 14.14 kN (C)
DJ = 16.67 kN (T)
