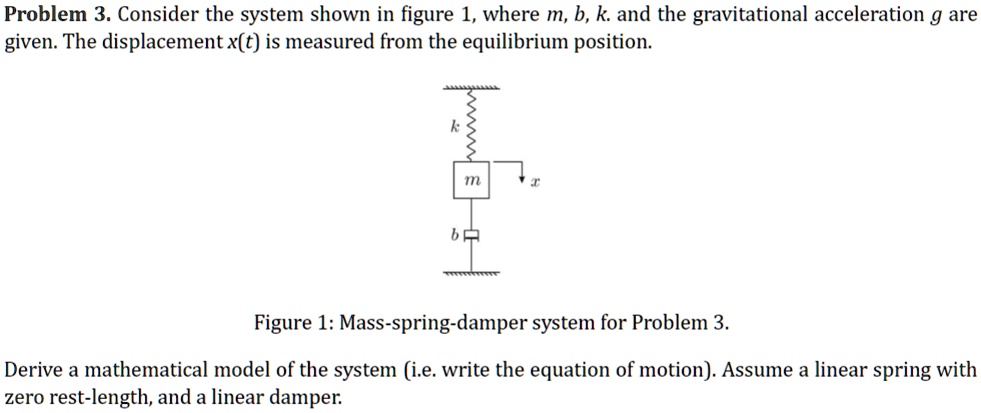

Problem 3. Consider the system shown in figure 1, where m, b, k, and the gravitational acceleration g are given. The displacement x(t) is measured from the equilibrium position.
Figure 1: Mass-spring-damper system for Problem 3.
Derive a mathematical model of the system (i.e. write the equation of motion). Assume a linear spring with zero rest-length, and a linear damper.
