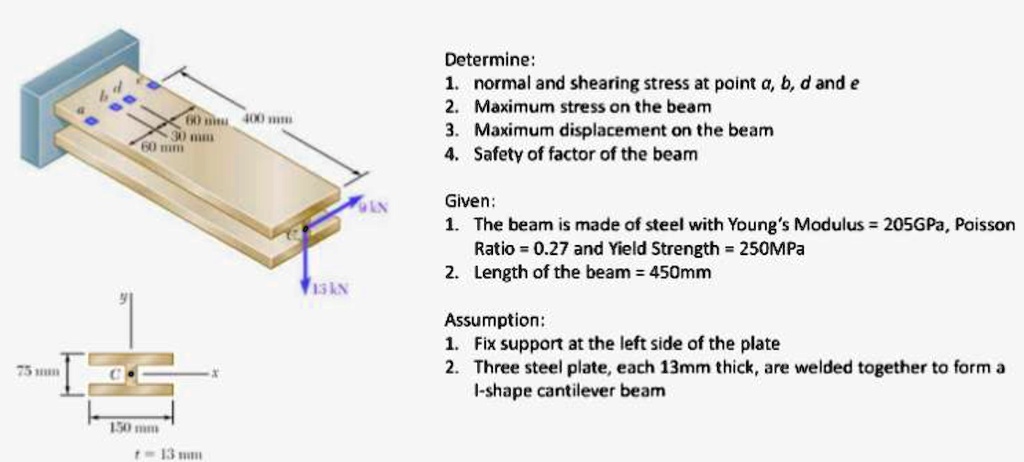

75 mm
60 mm 400 mm
30 mm
60 mm
13 kN
9 kN
Determine:
1. normal and shearing stress at point a, b, d and e
2. Maximum stress on the beam
3. Maximum displacement on the beam
4. Safety of factor of the beam
Given:
1. The beam is made of steel with Young's Modulus = 205GPa, Poisson
Ratio = 0.27 and Yield Strength = 250MPa
2. Length of the beam = 450mm
Assumption:
1. Fix support at the left side of the plate
2. Three steel plate, each 13mm thick, are welded together to form a
I-shape cantilever beam
150 mm
13 mm
