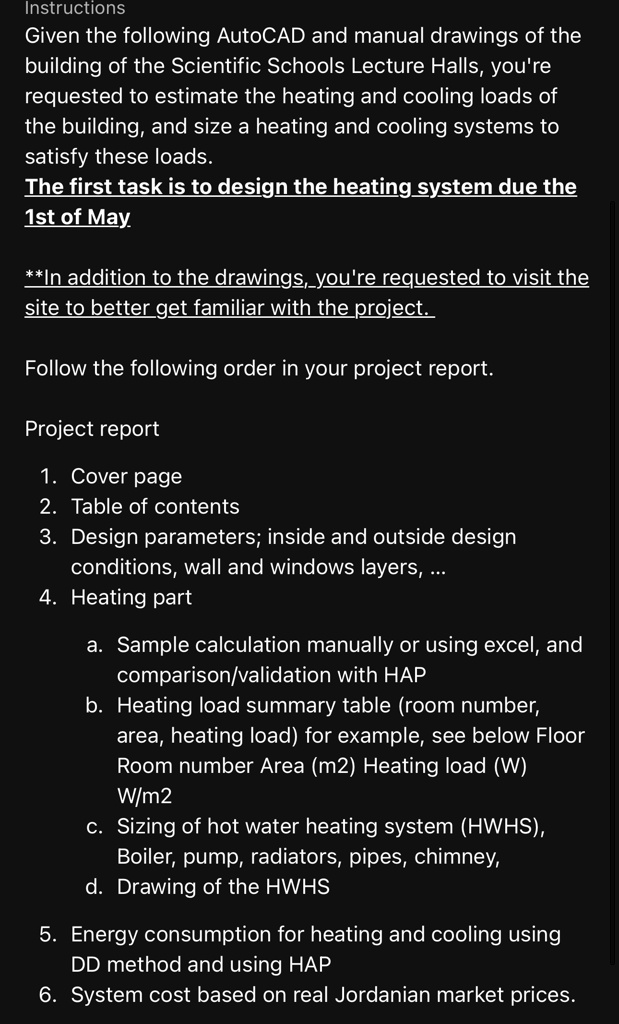

Instructions:
Given the following AutoCAD and manual drawings of the building of the Scientific Schools Lecture Halls, you're requested to estimate the heating and cooling loads of the building, and size a heating and cooling systems to satisfy these loads. The first task is to design the heating system due on the 1st of May.
**In addition to the drawings, you're requested to visit the site to better get familiar with the project.
Follow the following order in your project report:
Project report
1. Cover page
2. Table of contents
3. Design parameters; inside and outside design conditions, wall and windows layers, ...
4. Heating part
a. Sample calculation manually or using excel, and comparison/validation with HAP
b. Heating load summary table (room number, area, heating load) for example, see below:
Floor Room number Area (m2) Heating load (W) W/m2
c. Sizing of hot water heating system (HWHS), Boiler, pump, radiators, pipes, chimney,
d. Drawing of the HWHS
5. Energy consumption for heating and cooling using DD method and using HAP
6. System cost based on real Jordanian market prices.
