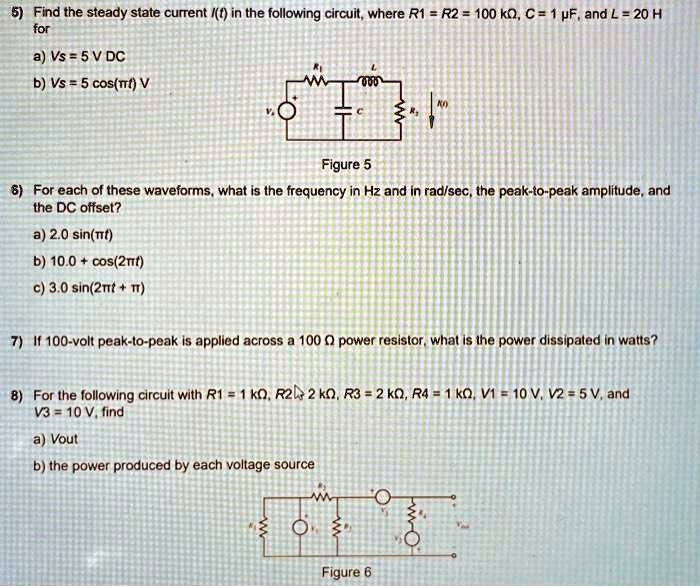

5) Find the steady state current \(i(t)\) in the following circuit, where R1 = R2 = 100 k\Omega, C = 1 \mu F, and L = 20 H
for
a) Vs = 5 V DC
b) Vs = 5 cos(\pi t) V
6) For each of these waveforms, what is the frequency in Hz and in rad/sec, the peak-to-peak amplitude, and
the DC offset?
a) 2.0 sin(\pi t)
b) 10.0 + cos(2\pi t)
c) 3.0 sin(2\pi t + \pi)
7) If 100-volt peak-to-peak is applied across a 100 \Omega power resistor, what is the power dissipated in watts?
8) For the following circuit with R1 = 1 k\Omega, R2 = 2 k\Omega, R3 = 2 k\Omega, R4 = 1 k\Omega, V1 = 10 V, V2 = 5 V, and
V3 = 10 V, find
a) Vout
b) the power produced by each voltage source
