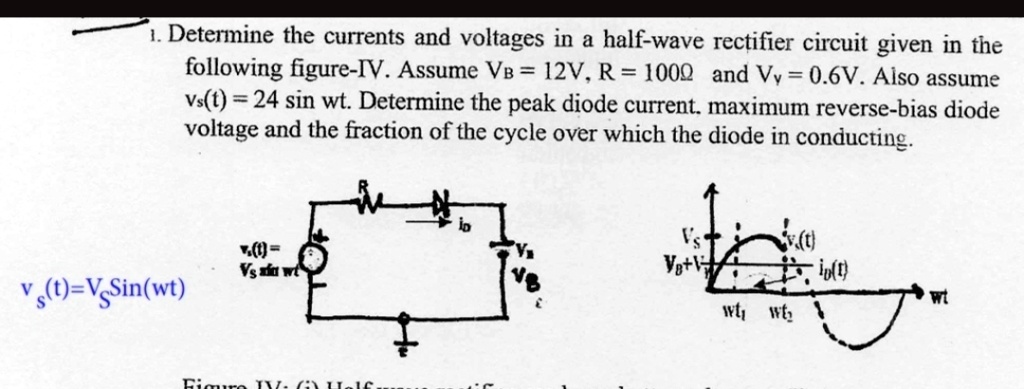

Determine the currents and voltages in a half-wave rectifier circuit given in the following figure-IV. Assume V_B = 12V, R = 100Ω, and V_y = 0.6V. Also assume v_s(t) = 24 sin wt. Determine the peak diode current, maximum reverse-bias diode voltage, and the fraction of the cycle over which the diode is conducting.
v_s(t) = V_s Sin(wt)
1. Determine the currents and voltages in a half-wave rectifier circuit given in the following figure-IV. Assume V = 12V, R = 100Ω, and V = 0.6V. Also assume v_s(t) = 24 sin wt. Determine the peak diode current, maximum reverse-bias diode voltage, and the fraction of the cycle over which the diode is conducting.
v,t = Vsa
Va+/
10(t)
v_s(t) = V_s Sin(wt)
wt, wt,
