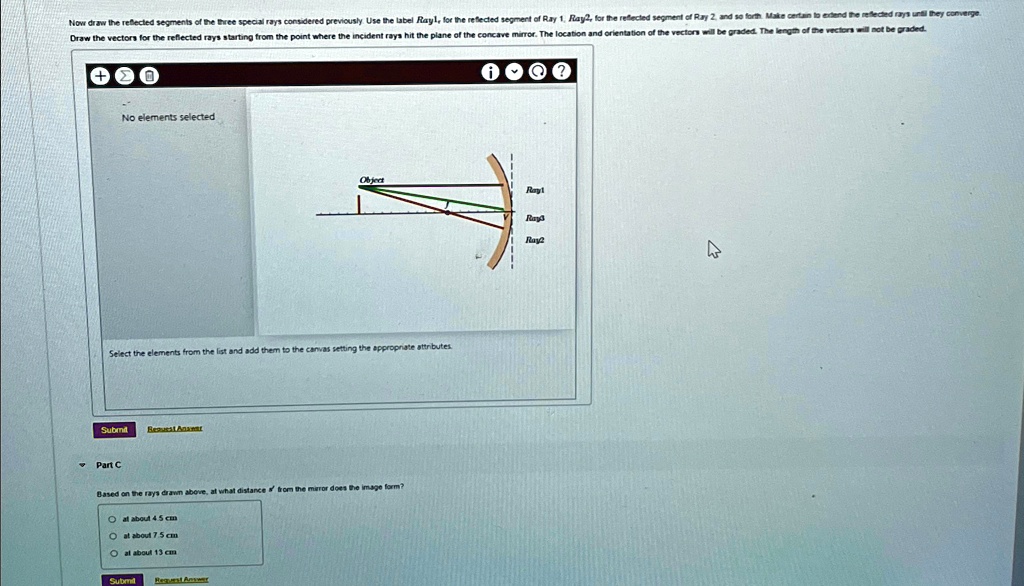

Now draw the reflected segments of the three special rays considered previously. Use the label Rayl, for the reflected segment of Ray 1, Ray2, for the reflected segment of Ray 2, and so forth. Maike certain to extend the reflected rays until they converge.
Draw the vectors for the reflected rays starting from the point where the incident rays hit the plane of the concave mirror. The location and orientation of the vectors will be graded. The length of the vectors will not be graded.
No elements selected
Object
Ray1
Ray3
Ray2
Select the elements from the list and add them to the canvas setting the appropriate attributes
Submit Request Anawer
Part C
Based on the rays drawn above, at what distance $r$ from the mirror does the image form?
\textcircled{a} at about 4.5 cm
\textcircled{b} at about 7.5 cm
\textcircled{c} at about 13 cm
Submit Request Answer
