Problem No. 2 (16 pts)
Show all of your work to get full credit.

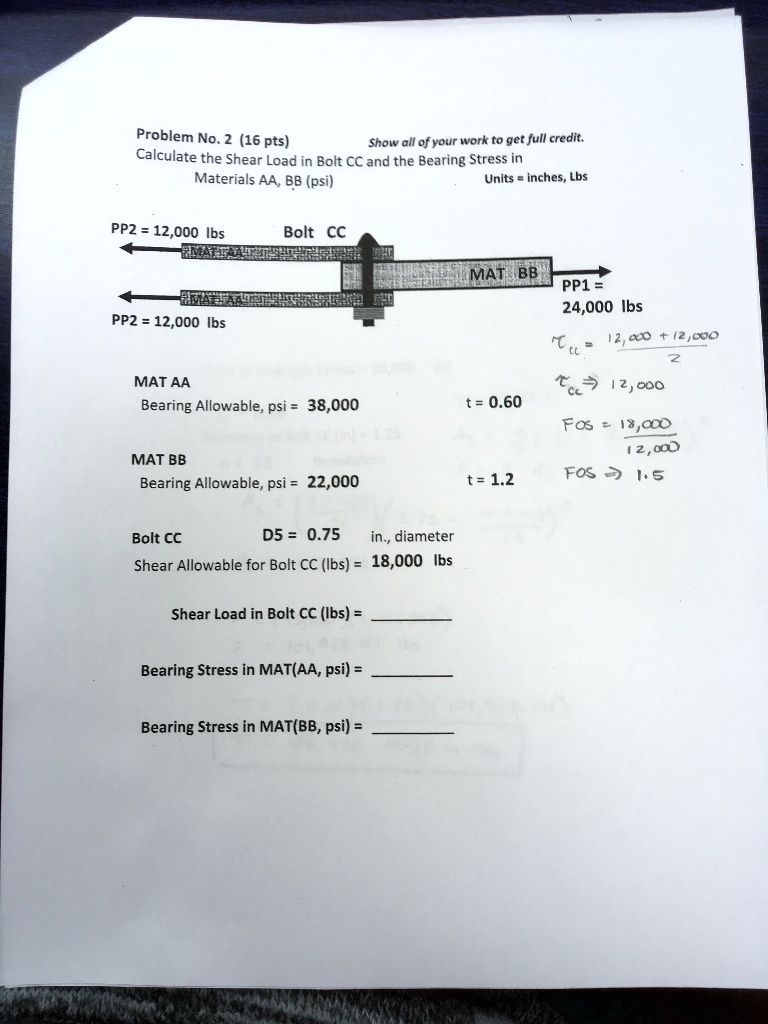

Calculate the Shear Load in Bolt CC and the Bearing Stress in
Materials AA, BB (psi)
Units = inches, Lbs
PP2 = 12,000 lbs
Bolt CC
PP2 = 12,000 lbs
MAT AA
Bearing Allowable, psi = 38,000
t = 0.60
MAT BB
Bearing Allowable, psi = 22,000
t = 1.2
Bolt CC
D5 = 0.75
in., diameter
Shear Allowable for Bolt CC (lbs) = 18,000 lbs
Shear Load in Bolt CC (lbs) =
Bearing Stress in MAT(AA, psi) =
Bearing Stress in MAT(BB, psi) =
