Rated power 6.0kW
Rated voltage 380 Vrms line (220Vrms phase-neutral voltage)
Rated frequency 50Hz Number of poles 4
r1= 1.5 $\Omega$, x1 = 1.51j$\Omega$ r2= 0.55$\Omega$, x2 = 1.25j$\Omega$ xm= 14j$\Omega$ rc=$\infty$
v(t)= $V_m$ sin($\omega$t)

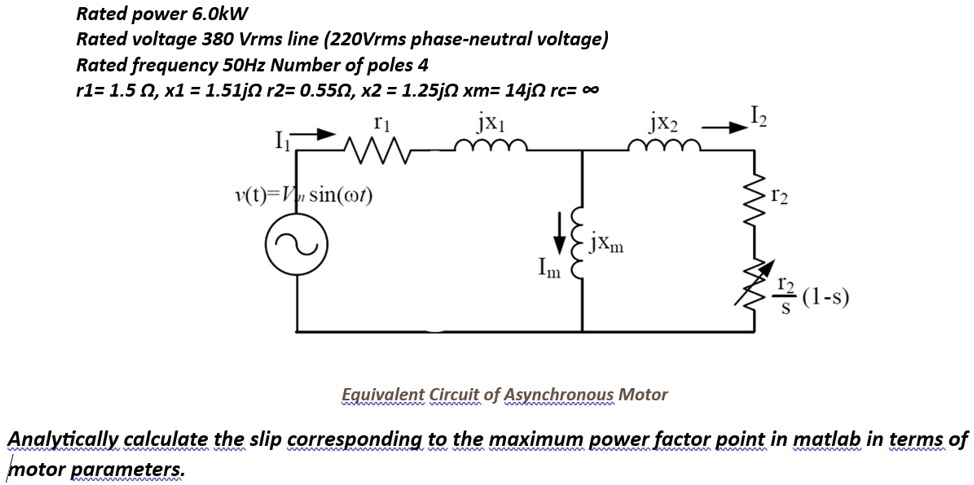

Equivalent Circuit of Asynchronous Motor
Analytically calculate the slip corresponding to the maximum power factor point in matlab in terms of
motor parameters.
