4.

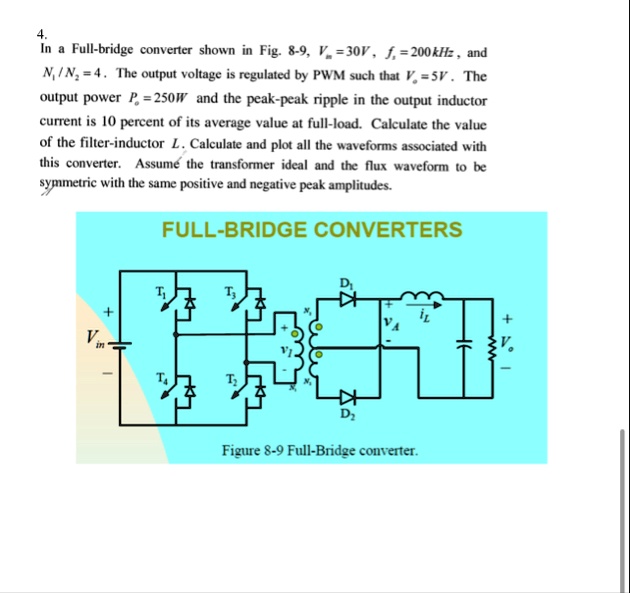

In a Full-bridge converter shown in Fig. 8-9, $V_{in}=30V$, $f_{s}=200kHz$, and
$N_{1}/N_{2}=4$. The output voltage is regulated by PWM such that $V_{o}=5V$. The
output power $P_{o}=250W$ and the peak-peak ripple in the output inductor
current is 10 percent of its average value at full-load. Calculate the value
of the filter-inductor $L$. Calculate and plot all the waveforms associated with
this converter. Assume the transformer ideal and the flux waveform to be
symmetric with the same positive and negative peak amplitudes.
FULL-BRIDGE CONVERTERS
$V_{in}$
$i_{L}$
$V_{o}$
Figure 8-9 Full-Bridge converter.
