RMS

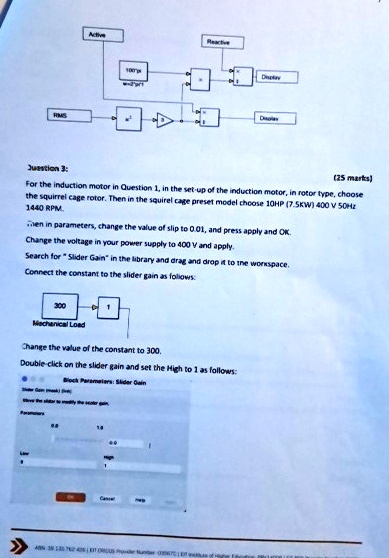

Question 3:
Active
100\omega^2/p^2
Reactive
Display
Disola
(25 marks)
For the induction motor in Question 1, in the set-up of the induction motor, in rotor type, choose
the squirrel cage rotor. Then in the squirel cage preset model choose 10HP (7.5KW) 400 V 50Hz
1440 RPM.
men in parameters, change the value of slip to 0.01, and press apply and OK.
Change the voltage in your power supply to 400 V and apply.
Search for \"Slider Gain\" in the library and drag and drop it to the workspace.
Connect the constant to the slider gain as follows:
300
Mechanical Load
1
Change the value of the constant to 300.
Double-click on the slider gain and set the High to 1 as follows:
Block Parameters: Slider Gain
