Find the y, g, and h parameters.

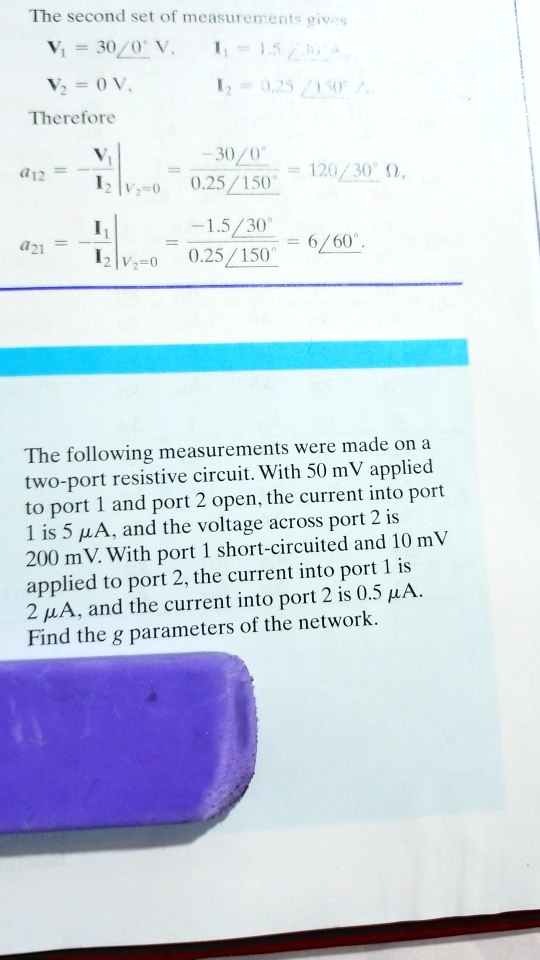

The second set of measurements gives V=30/0V, I=1.530A.
V=0V, I=0.250A.
Therefore,
Vi = 30/0, 120/30, 1V = 0, 0.25/150, 11 - 1.5/30 = 6/60, 12V = 0, 0.25/150.
a12
a21
The following measurements were made on a two-port resistive circuit. With 50mV applied to port 1 and port 2 open, the current into port 1 is 5A, and the voltage across port 2 is 200mV. With port 1 short-circuited and 10mV applied to port 2, the current into port 1 is 2A, and the current into port 2 is 0.5A. Find the g parameters of the network.
