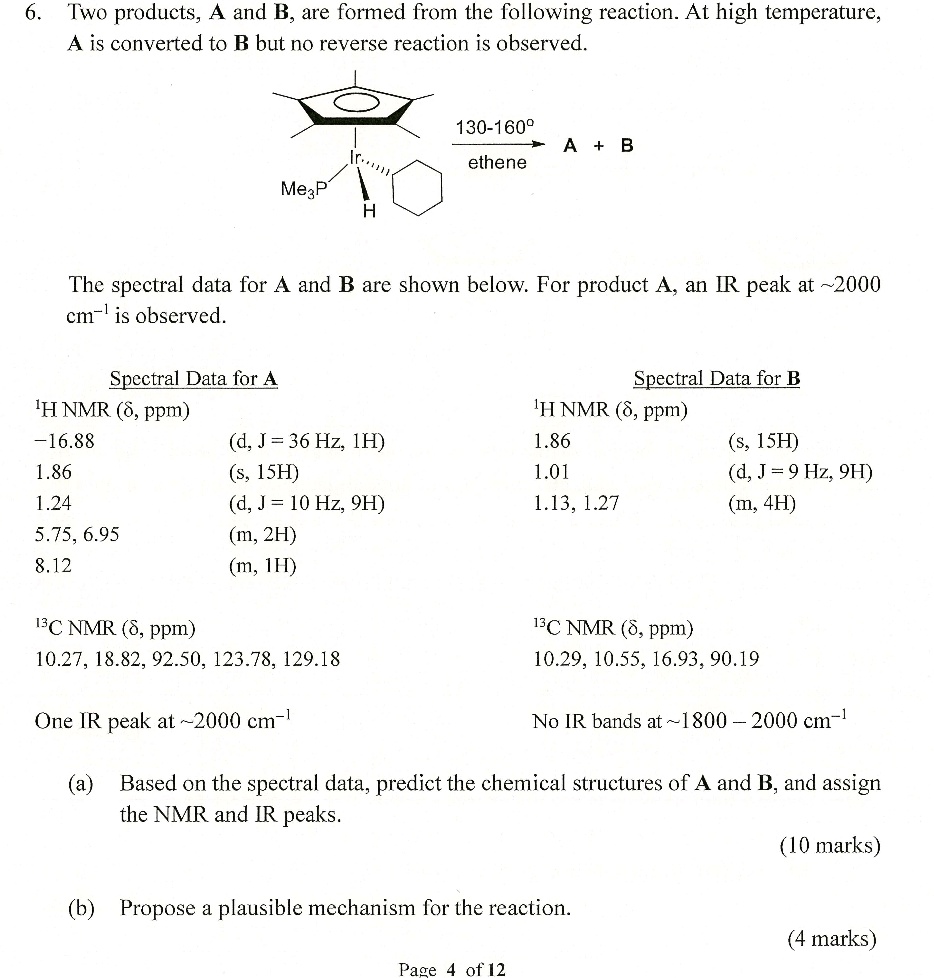

6. Two products, A and B, are formed from the following reaction. At high temperature,
A is converted to B but no reverse reaction is observed.
130-160°
ethene
A + B
Me3P
H
The spectral data for A and B are shown below. For product A, an IR peak at ~2000
cm?¹ is observed.
Spectral Data for A
Spectral Data for B
¹H NMR (?, ppm)
¹H NMR (?, ppm)
-16.88
(d, J = 36 Hz, 1H)
1.86
(s, 15H)
1.86
(s, 15H)
1.01
(d, J = 9 Hz, 9H)
1.24
(d, J = 10 Hz, 9H)
1.13, 1.27
(m, 4H)
5.75, 6.95
(m, 2H)
8.12
(m, 1H)
¹³C NMR (?, ppm)
¹³C NMR (?, ppm)
10.27, 18.82, 92.50, 123.78, 129.18
10.29, 10.55, 16.93, 90.19
One IR peak at ~2000 cm?¹
No IR bands at ~1800 - 2000 cm?¹
(a) Based on the spectral data, predict the chemical structures of A and B, and assign
the NMR and IR peaks.
(10 marks)
(b) Propose a plausible mechanism for the reaction.
(4 marks)
Page 4 of 12
