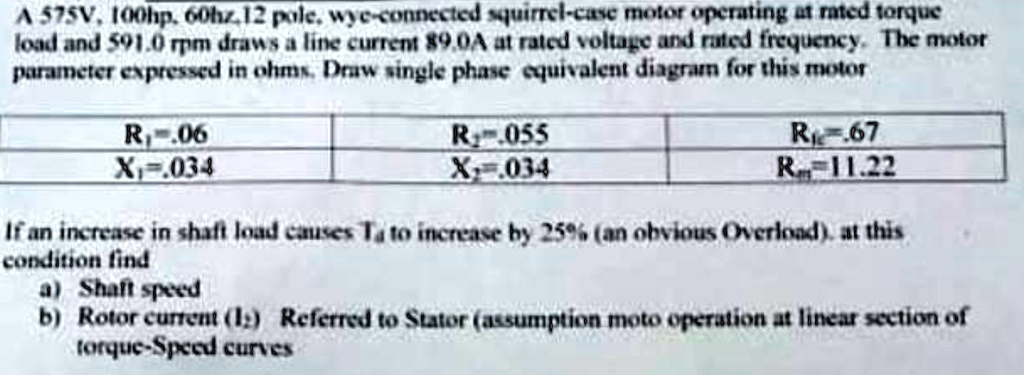

A 575V, 100hp, 60hz, 12 pole, wye-connected squirrel-case motor operating at rated torque
load and 591.0 rpm draws a line current 89.0A at rated voltage and rated frequency. The motor
parameter expressed in ohms. Draw single phase equivalent diagram for this motor
$R_1$=.06
$X_1$=.034
$R_2$=.055
$X_2$=.034
$R_c$=.67
$R_m$=11.22
If an increase in shaft load causes $T_a$ to increase by 25% (an obvious Overload), at this
condition find
a) Shaft speed
b) Rotor current ($I_2$) Referred to Stator (assumption moto operation at linear section of
torque-Speed curves
