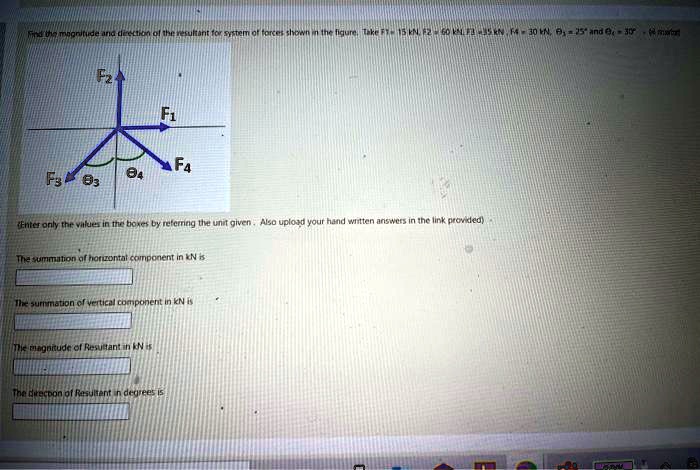

Find the magnitude and direction of the resultant for system of forces shown in the figure. Take $F_1 = 15$ kN, $F_2 = 60$ kN, $F_3 = 35$ kN, $F_4 = 30$ kN, $\theta_3 = 25^\circ$ and $\theta_4 = 30^\circ$
$F_2$
$F_1$
$F_4$
$F_3 \theta_3 \quad \theta_4$
Enter only the values in the boxes by referring the unit given. Also upload your hand written answers in the link provided)
The summation of horizontal component in kN is
The summation of vertical component in kN is
The magnitude of Resultant in kN is
The direction of Resultant in degrees is
