CSC2025
Computer Architecture and Assembly Language HW #3 - 104 Pts
Competency: Describe and explain terms associated with Computer Abstractions and Technology (#1)
Competency: Comprehend and Arithmetic for Computers (#3)

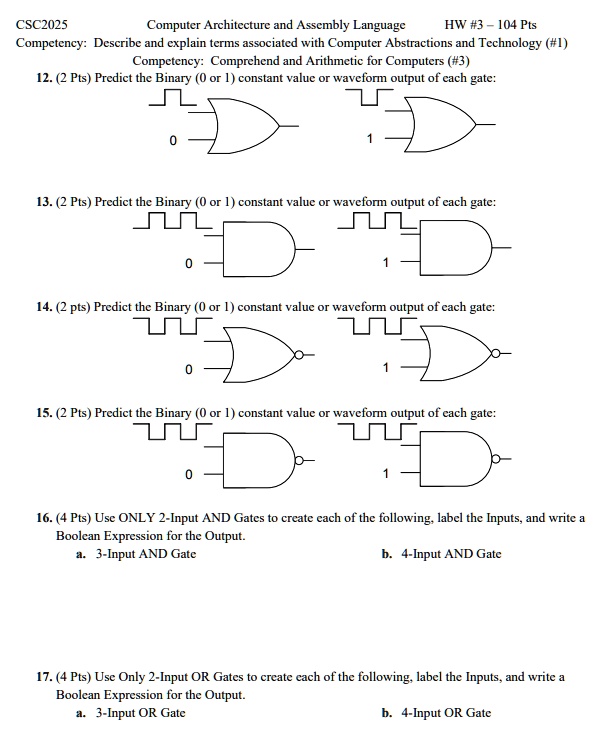

12. (2 Pts) Predict the Binary (0 or 1) constant value or waveform output of each gate:
13. (2 Pts) Predict the Binary (0 or 1) constant value or waveform output of each gate:
14. (2 pts) Predict the Binary (0 or 1) constant value or waveform output of each gate:
15. (2 Pts) Predict the Binary (0 or 1) constant value or waveform output of each gate:
16. (4 Pts) Use ONLY 2-Input AND Gates to create each of the following, label the Inputs, and write a
Boolean Expression for the Output.
a. 3-Input AND Gate
b. 4-Input AND Gate
17. (4 Pts) Use Only 2-Input OR Gates to create each of the following, label the Inputs, and write a
Boolean Expression for the Output.
a. 3-Input OR Gate
b. 4-Input OR Gate
