Part A

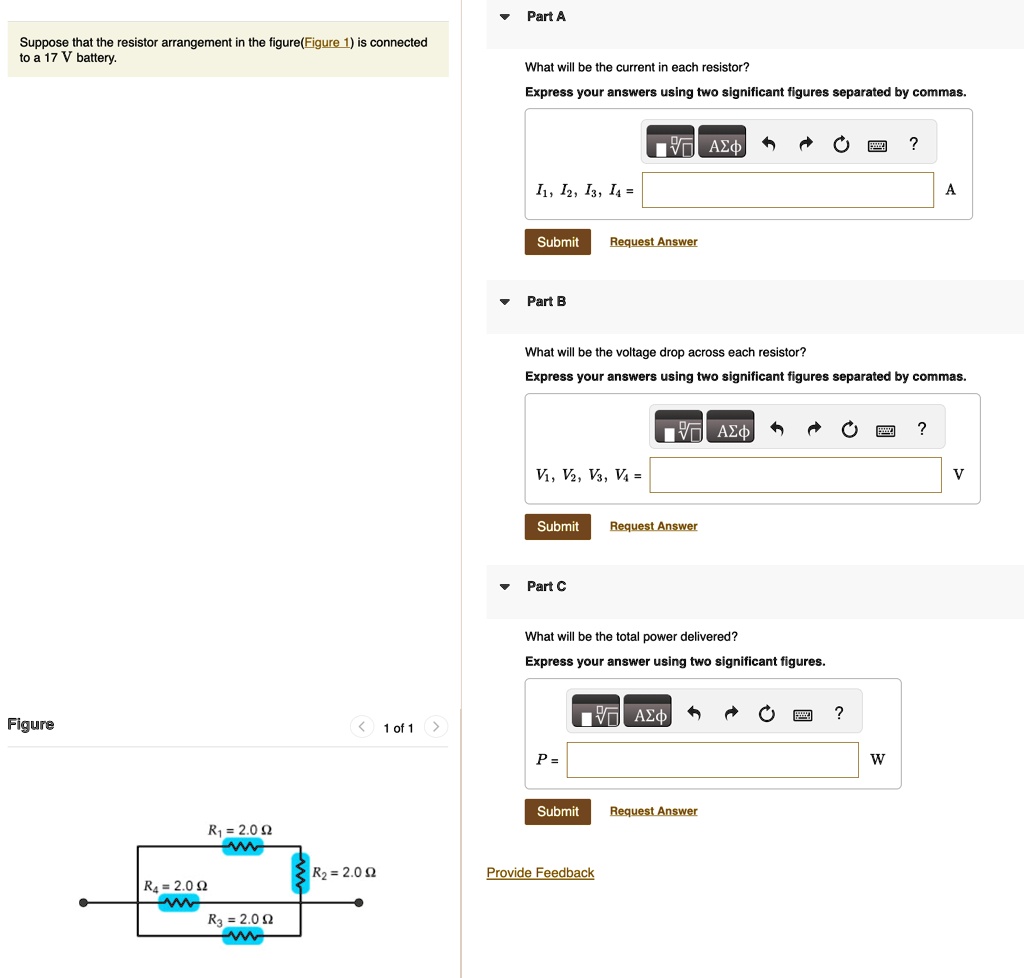

Suppose that the resistor arrangement in the figure (Figure 1) is connected
to a 17 V battery.
Figure
R4 = 2.0 ?
w
R? = 2.0 ?
w
R3 = 2.0 ?
w
What will be the current in each resistor?
Express your answers using two significant figures separated by commas.
???
11, 12, 13, 14 =
Submit
Request Answer
Part B
What will be the voltage drop across each resistor?
Express your answers using two significant figures separated by commas.
???
V1, V2, V3, V4 =
Submit Request Answer
Part C
What will be the total power delivered?
Express your answer using two significant figures.
< 1 of 1
P =
???
Submit
Request Answer
R2 = 2.0 ?
Provide Feedback
?A
?V
?W
