3 25 points

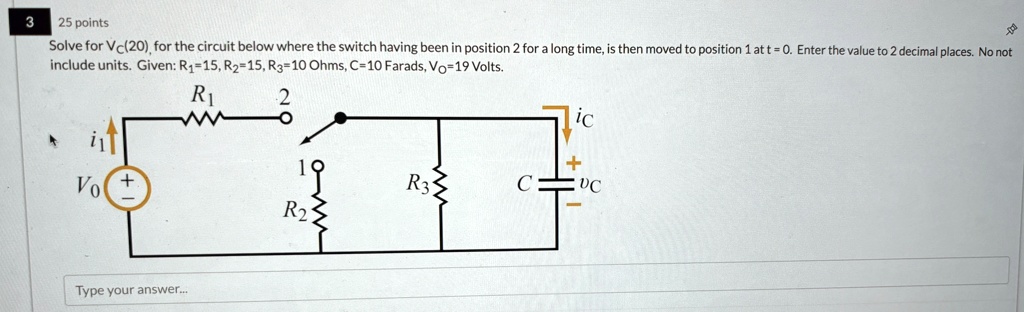

Solve for VC(20), for the circuit below where the switch having been in position 2 for a long time, is then moved to position 1 at t = 0. Enter the value to 2 decimal places. No not
include units. Given: R1=15, R2=15, R3=10 Ohms, C=10 Farads, Vo=19 Volts.
R1
2
ic
11
Vo +
19
R3
C=
UC
R2
Type your answer...
