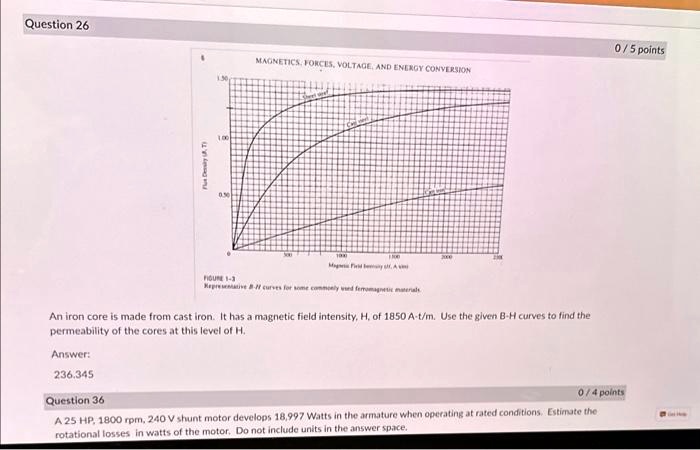

Question 26
0/5 points
MAGNETICS, FORCES, VOLTAGE, AND ENERGY CONVERSION
Flu Dessly (AT)
0.50
001
FIGURE 1-3
100
2000
100
Magnet FA
Representative $B-H$ curves for some commonly used ferromagnetic materials
An iron core is made from cast iron. It has a magnetic field intensity, H, of 1850 A-t/m. Use the given B-H curves to find the
permeability of the cores at this level of H.
Answer:
236.345
Question 36
0/4 points
A 25 HP, 1800 rpm, 240 V shunt motor develops 18,997 Watts in the armature when operating at rated conditions. Estimate the
rotational losses in watts of the motor. Do not include units in the answer space.
