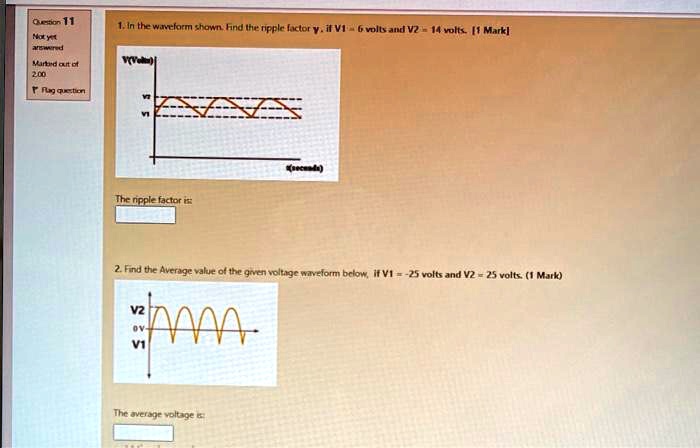

Question 11
Not yet
swered
Marked out of
2.00
Flag question
1. In the waveform shown. Find the ripple factor \(y\), if \(V1 = 6\) volts and \(V2 = 14\) volts. [1 Mark]
\(V\)
\(V2\)
\(V1\)
(seconds)
The ripple factor is:
2. Find the Average value of the given voltage waveform below, if \(V1 = -25\) volts and \(V2 = 25\) volts. [1 Mark]
\(V2\)
\(0V\)
\(V1\)
The average voltage is
