Use ANALYTICAL METHOD ONLY. Figure P6-28 shows a quick-return mechanism with dimensions. Use an ANALYTICAL method to determine the velocities of points A and B and the velocity of slip for the position shown if ω2 = 16 rad/sec CCW. Ignore links 5 and 6.
C
L2 = 1.00 in
L4 = 4.76 in
L5 = 4.55 in
θ = 99°
θ2 = 1.69° @ 15.5 in
2.86 in
x
O

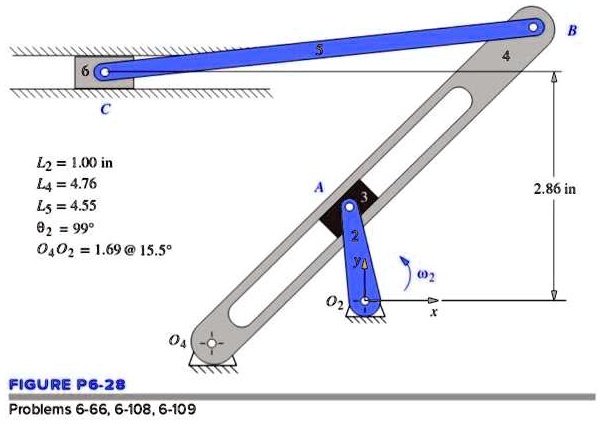

FIGURE P6-28
Problems 6-66, 6-108, 6-109
