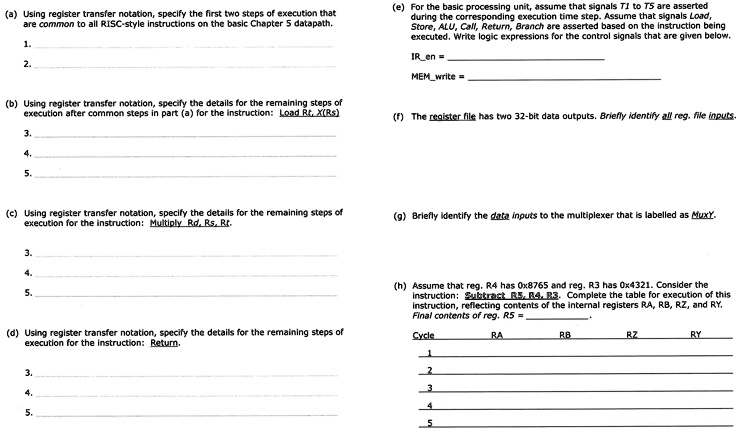

(a) Using register transfer notation, specify the first two steps of execution that
are common to all RISC-style instructions on the basic Chapter 5 datapath.
1.
2.
(e) For the basic processing unit, assume that signals 71 to 75 are asserted
during the corresponding execution time step. Assume that signals Load,
Store, ALU, Call, Return, Branch are asserted based on the instruction being
executed. Write logic expressions for the control signals that are given below.
IR_en =
MEM_write =
(b) Using register transfer notation, specify the details for the remaining steps of
execution after common steps in part (a) for the instruction: Load Rt, X(Rs)
3.
4.
5.
(f) The register file has two 32-bit data outputs. Briefly identify all reg. file inputs.
(c) Using register transfer notation, specify the details for the remaining steps of
execution for the instruction: Multiply Rd, Rs, Rt.
3.
5.
(d) Using register transfer notation, specify the details for the remaining steps of
execution for the instruction: Return.
3.
4.
5.
(g) Briefly identify the data inputs to the multiplexer that is labelled as MuxY.
(h) Assume that reg. R4 has 0x8765 and reg. R3 has 0x4321. Consider the
instruction: Subtract R5, R4, R3. Complete the table for execution of this
instruction, reflecting contents of the internal registers RA, RB, RZ, and RY.
Final contents of reg. R5 =
RA
RB
RZ
RY
Cycle
1
2
3
4
5
