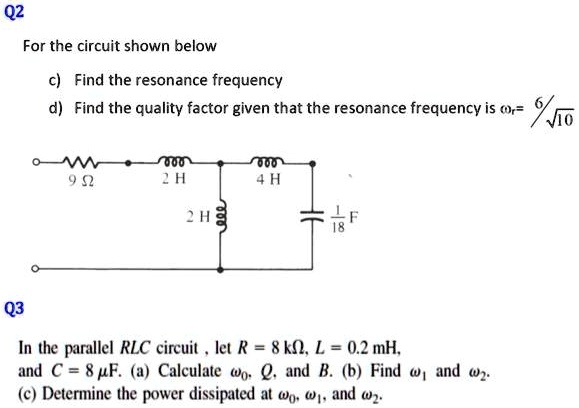

Q2
For the circuit shown below
c) Find the resonance frequency
d) Find the quality factor given that the resonance frequency is $\omega_r = \frac{6}{\sqrt{10}}$
9?
2 H
2 H
4 H
$\frac{1}{18}$ F
Q3
In the parallel RLC circuit, let R = 8 k?, L = 0.2 mH,
and C = 8 µF. (a) Calculate $\omega_o$, Q, and B. (b) Find $\omega_1$ and $\omega_2$.
(c) Determine the power dissipated at $\omega_o$, $\omega_1$, and $\omega_2$.
