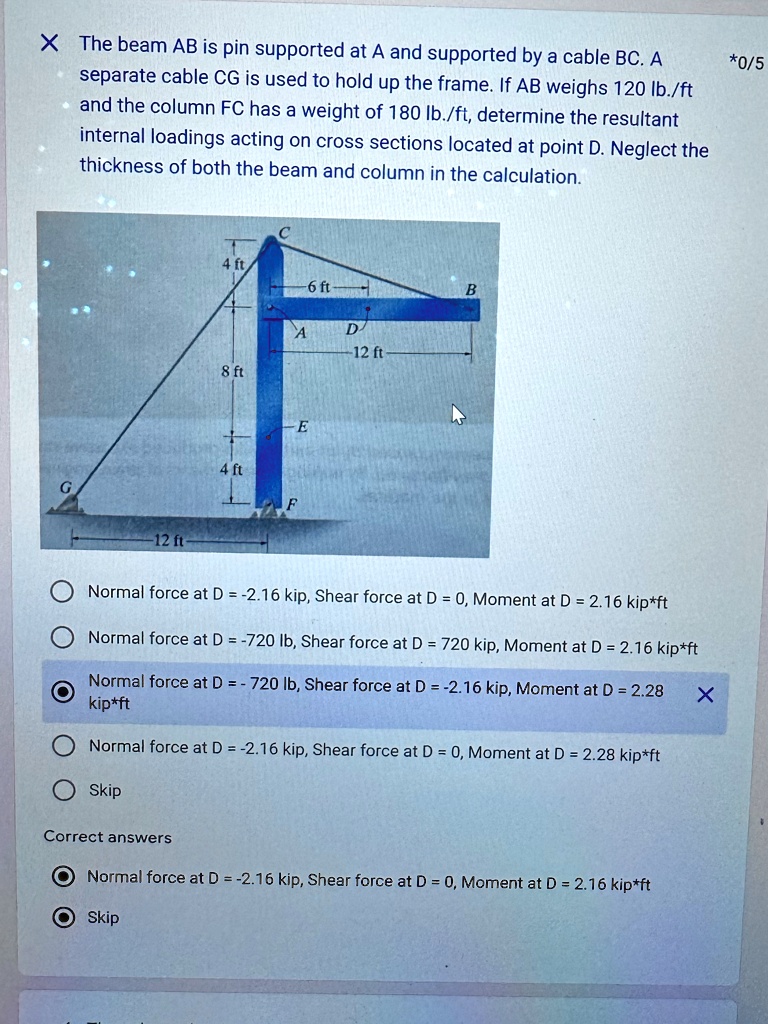

The beam AB is pin supported at A and supported by a cable BC. A separate cable CG is used to hold up the frame. If AB weighs 120 lb./ft and the column FC has a weight of 180 lb./ft, determine the resultant internal loadings acting on cross sections located at point D. Neglect the thickness of both the beam and column in the calculation.
Normal force at D = -2.16 kip, Shear force at D = 0, Moment at D = 2.16 kip*ft
Normal force at D = -720 lb, Shear force at D = 720 kip, Moment at D = 2.16 kip*ft
Normal force at D = - 720 lb, Shear force at D = -2.16 kip, Moment at D = 2.28 kip*ft
Normal force at D = -2.16 kip, Shear force at D = 0, Moment at D = 2.28 kip*ft
Skip
Correct answers
Normal force at D = -2.16 kip, Shear force at D = 0, Moment at D = 2.16 kip*ft
Skip
