What is Current in Physics?Current, in the realm of physics, refers to the flow of electric charge. This flow is quantified in units called amperes (A) and is typically carried through conductive materials such as wires. In essence, an electric current occurs when charged particles, often electrons, move through a conductor. The magnitude of the current is determined by the amount of charge passing a point in the conductor per unit time. For example, if 1 coulomb of charge passes through a point in the circuit per second, the current is 1 ampere (A).
What is Resistance in Physics?Resistance is a measure of a material's ability to impede the flow of electric current. It quantifies how strongly a material opposes the movement of electric charge. The unit of resistance is the ohm (?). Factors affecting resistance include the material's intrinsic properties, its temperature, length, and cross-sectional area. For instance, a longer or thinner wire has higher resistance compared to a shorter or thicker one. Mathematically, Ohm's law relates resistance (R) to voltage (V) and current (I) via the formula: R = V / I. This means that for a given voltage, an increase in resistance results in a decrease in current.
What is Electromotive Force (EMF) in Physics?Electromotive force (EMF) is a term that describes the potential difference generated by a source such as a battery or a generator. Despite its name, EMF is not a force but a potential difference measured in volts (V). It represents the work done per unit charge to move charges from a lower potential to a higher potential within an electrical source. Essentially, EMF drives current through a circuit, even when there is resistance. A battery, for example, has a specific EMF value that indicates its ability to move electrons and create an electric current.
How Do These Concepts Relate to Each Other?The relationship between current (I), resistance (R), and electromotive force (EMF, represented as E) in an electric circuit is a foundational concept in physics, eloquently captured by Ohm's Law. According to Ohm's Law, the current through a circuit is directly proportional to the EMF and inversely proportional to the resistance. This can be expressed with the equation:
I = E / R
This equation shows that:- If the EMF (E) increases, and resistance (R) remains constant, the current (I) will increase.- If the resistance (R) increases while the EMF (E) is constant, the current (I) will decrease.
Why Are These Concepts Important?Understanding current, resistance, and EMF is essential for studying and designing electrical circuits. These principles form the basis of electrical engineering, allowing us to create efficient and functional systems for power distribution, electronics, and communication technologies. For instance, knowing how to control resistance is crucial for developing devices such as resistors, used to manage current flow in electronic circuits. Similarly, comprehending EMF helps in understanding how batteries and generators function to supply electrical energy.

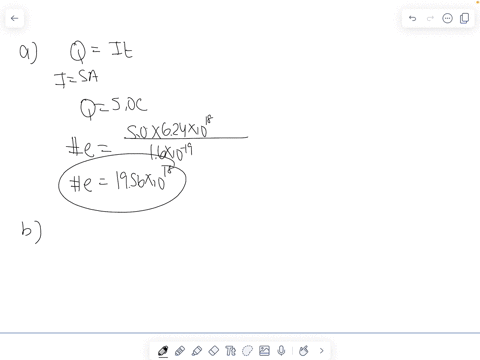

A $5.00-\mathrm{A}$ current runs through a 12 -gauge copper wire (diameter 2.05 $\mathrm{mm} )$ and through a light bulb. Copper has $8.5 \times 10^{…

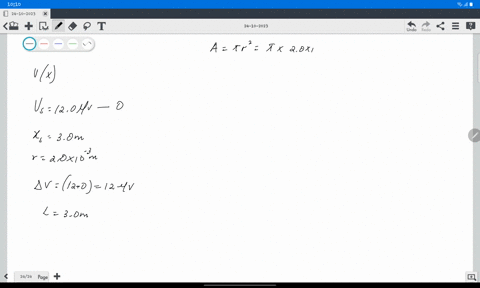

Figure 26.27 gives the electric potential $V(x)$ along a cop- per wire carrying uniform current from a point of higher potential $V_{s}=12.0 \mu \m…
(III) A long straight wire and a small rectangular wire loop lie in the same plane, Fig. $25 .$ Determine the mutual inductance in terms of $\ell _ {…
In the circuit shown in Figure 19.61 current flows through the 5.00$\Omega$ resistor in the direction shown, and this resistor is measured to be cons…
