Capacitance and Dielectrics in Electrical Engineering: Essential Concepts for Electronic Device Design

What is Capacitance?

Capacitance is a measure of the ability of a system to store electric charge per unit voltage. It quantitatively describes how much charge can be stored on two conducting surfaces (or plates) when a potential difference is applied across them. The unit of capacitance is the Farad (F).

How is Capacitance Defined Mathematically?

Capacitance (C) is defined by the equation:
C = Q / V
where:
- C is the capacitance,
- Q is the charge stored on the plates, and
- V is the voltage across the plates.

What Are Capacitors?

Capacitors are devices that store electrical energy in an electric field. They consist of two conductive plates separated by an insulating material known as the dielectric.

What is the Role of a Dielectric in a Capacitor?

A dielectric material, placed between the plates of a capacitor, influences its overall capacitance. The dielectric serves several purposes:
1. It increases the capacitance by reducing the electric field strength for a given charge on the plates, thereby allowing the capacitor to store more charge at the same voltage.
2. It provides mechanical support and separation between the plates to prevent electrical breakdown.

What is the Dielectric Constant and How Does it Affect Capacitance?

The dielectric constant, also known as the relative permittivity (?r), is a dimensionless measure of how much a dielectric material can increase the capacitance of a capacitor compared to a vacuum. The capacitance of a capacitor with a dielectric is given by:
C = ?r * ?0 * A / d
where:
- ?r is the dielectric constant,
- ?0 is the permittivity of free space (approximately 8.85 × 10^-12 F/m),
- A is the area of one plate, and
- d is the distance between the plates.

How Does the Presence of a Dielectric Material Change the Electric Field and Voltage?

When a dielectric material is introduced between the plates of a capacitor:
1. The dielectric reduces the electric field (E) between the plates for a given amount of charge (Q). This is because the dielectric becomes polarized in the presence of an electric field, reducing the overall field strength.
2. The voltage (V) across the capacitor decreases because V = Ed, and E is reduced by the introduction of the dielectric.

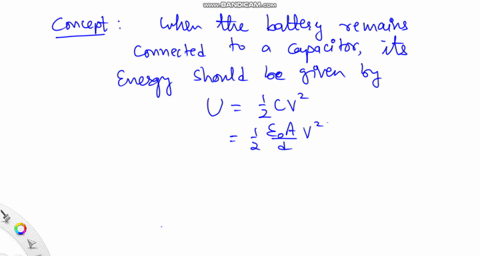

How is Energy Stored in a Capacitor with a Dielectric?

The energy (U) stored in a capacitor is given by:
U = 1/2 * C * V^2
When a dielectric is introduced, the capacitance (C) increases, and for a constant voltage, the stored energy also increases. Alternatively, for a capacitor charged to a fixed quantity of charge, the introduction of a dielectric allows the capacitor to store the same amount of energy at a lower voltage.

Can You Provide an Example of Capacitance Calculation with a Dielectric?

Certainly! Consider a parallel-plate capacitor with the following parameters:
- Area of each plate (A) = 0.02 m^2
- Distance between the plates (d) = 0.001 m
- Dielectric constant (?r) = 4

The capacitance without dielectric is:
C0 = ?0 * A / d = (8.85 × 10^-12 F/m) * (0.02 m^2) / (0.001 m) = 1.77 × 10^-10 F

With the dielectric, the capacitance is:
C = ?r * C0 = 4 * 1.77 × 10^-10 F = 7.08 × 10^-10 F

Thus, the capacitance increases by a factor of 4 due to the presence of the dielectric material.

What is the Practical Significance of Capacitance and Dielectrics?

Capacitance and dielectrics are foundational concepts in electronics and electrical engineering. They are used in the design of various electronic components such as capacitors in circuits, which play crucial roles in filtering, energy storage, timing applications, and more. Dielectrics also find applications in insulating materials in cables and in various other engineering contexts.

By understanding these principles, students can better comprehend the behavior of electrical components and systems in practical applications.
