What is Electric Potential in Physics?
Electric potential, often symbolized by V, is the amount of electric potential energy per unit charge at a specific point in an electric field. It is a scalar quantity, meaning it has magnitude but no direction. The unit of electric potential is volts (V).
Why is Electric Potential Important?
Electric potential is crucial because it helps us understand the behavior of electric charges within electrical fields. By knowing the potential at various points, we can determine how charges will move and how much work is needed to move a charge within the field.
How is Electric Potential Defined?
Electric potential at a point is defined as the work done in bringing a unit positive charge from infinity to that point, without any acceleration. Mathematically, electric potential V at a point is given by:
V = W/Q
where W is the work done (in joules) and Q is the charge (in coulombs).
How is Electric Potential Related to Electric Field?
The electric potential difference (or voltage) between two points is related to the electric field E. If you move a charge within the field, the electric potential difference between two points A and B is calculated by:
V_B - V_A = - ? E · dl
Here, ? E · dl represents the integral of the electric field E along the path from point A to point B. This relationship indicates that the electric potential decreases in the direction of the electric field.
What is the Potential Due to a Point Charge?
For a single point charge Q, the electric potential V at a distance r from the charge is given by:
V = kQ / r
where k is the Coulomb constant, approximately equal to 8.99 × 10^9 Nm²/C².
What is Equipotential Surface?
An equipotential surface is a surface on which the electric potential is the same everywhere. No work is required to move a charge along an equipotential surface, because there is no potential difference.
How Can We Calculate Electric Potential in Different Configurations?
1. Point Charge: V = kQ / r2. Multiple Point Charges: V = k ? (Qi / ri) for i = 1 to n (sum of potentials due to individual charges)3. Uniformly Charged Sphere: Inside a uniformly charged sphere, potential is constant. Outside, it behaves like a point charge.4. Electric Dipole: V = k(p · cos? / r²), where p is the dipole moment. Conclusion:
Understanding electric potential can help us predict and interpret the behavior of charges in an electrical field. Mastery of this concept allows for solving more complex problems in electrostatics and even in broader physics subjects.
For further clarity, one could engage in solving practical examples and experimenting with hypothetical scenarios to grasp how electric potential changes in different arrangements, enhancing comprehension.

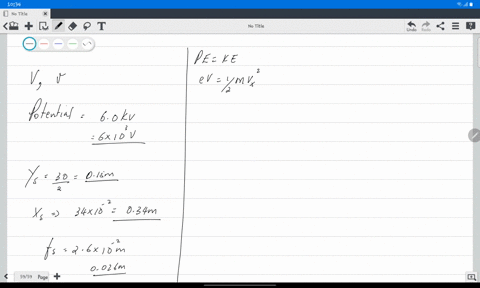

(III) Electrons are accelerated by 6.0 kV in a CRT.The screen is 30 cm wide and is 34 cm from the 2.6-cm-long deflection plates. Over what range must…
Two positively charged spheres, each with a charge of $2.0 \times$ $10^{-5} \mathrm{C},$ a mass of 1.0 $\mathrm{kg}$ , and separated by a distance of…
Multiple-Concept Example 4 deals with the concepts that are important in this problem. As illustrated in Figure $19.5 b,$ a negatively charged part…
A constant electric field accelerates a proton from rest through a distance of 2.00 $\mathrm{m}$ to a speed of $1.50 \times 10^{5} \mathrm{m} / \math…
