What is a Direct-Current (DC) Circuit?A direct-current (DC) circuit is a type of electrical circuit where the current flows in one direction only. This unidirectional flow of electric charge is produced by a source such as a battery or a DC power supply.
What Components are Commonly Found in a DC Circuit?A DC circuit typically includes the following components:1. Power Source: Provides the electric energy (e.g., batteries, solar cells).2. Conductors: Wires that carry the current.3. Load: The device or component that consumes the electric energy (e.g., resistors, light bulbs).4. Switch: A device that can open or close the circuit.
How Does Ohm's Law Apply to DC Circuits?Ohm's Law is fundamental to understanding DC circuits and is expressed as: V = I * Rwhere V is the voltage (potential difference), I is the current, and R is the resistance. It illustrates the linear relationship between voltage, current, and resistance in a circuit.
What is the Role of Resistors in a DC Circuit?Resistors are components that oppose the flow of electric current, producing a voltage drop in accordance with Ohm's Law. They are used to control the current in a circuit, divide voltages, or to dissipate energy as heat.
What are the Series and Parallel Configurations in DC Circuits?DC circuits can be configured in series or parallel:
1. Series Circuit: - All components are connected end-to-end, forming a single path for current flow. - The current is the same through each component. - The total resistance is the sum of individual resistances: R_total = R1 + R2 + ... + Rn. - Voltage across each component divides in proportion to their resistance.
2. Parallel Circuit: - Components are connected across common points, creating multiple paths for current flow. - The voltage across each component is the same. - The total resistance can be found using: 1/R_total = 1/R1 + 1/R2 + ... + 1/Rn. - The current divides among the parallel paths.
Can Kirchhoff’s Laws be Applied to DC Circuits?Yes, Kirchhoff’s Laws are essential for analyzing DC circuits, especially those that are complex:
1. Kirchhoff’s Current Law (KCL): - The total current entering a junction equals the total current leaving the junction. - This law is based on the principle of conservation of electric charge.
2. Kirchhoff’s Voltage Law (KVL): - The sum of all voltages around any closed loop in a circuit must equal zero. - This law follows from the conservation of energy.
What is the Power Consumption in a DC Circuit?The power consumed by a component in a DC circuit is given by: P = V * Iwhere P is power, V is voltage, and I is current. For a resistor, you can also express power as: P = I^2 * R or P = V^2 / R
How Do You Analyze a DC Circuit?To analyze a DC circuit, follow these steps:1. Identify and Label All Components: Determine the power source, resistors, and other elements.2. Determine the Configuration: Identify whether components are arranged in series, parallel, or a combination.3. Apply Ohm’s Law and Kirchhoff’s Laws: Use these laws to find unknown values of current, voltage, and resistance.4. Calculate Power: Determine the power consumed by each component if needed.
By understanding these foundational principles, you can effectively analyze and comprehend the behavior of DC circuits in various practical and theoretical scenarios.

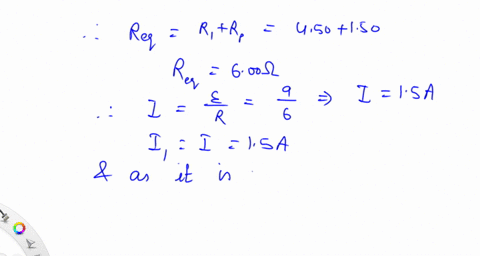

In the circuit of $\textbf{Fig. E26.15}$, each resistor represents a light bulb. Let $R_1 = R_2 = R_3 = R_4$ = 4.50 $\Omega$ and $\varepsilon$ = 9.00…
A battery with an internal resistance of $r$ and an emf of $10.00 \mathrm{V}$ is connected to a load resistor $R=r .$ As the battery ages, the intern…
There are 11 lights in series, and they are in series with two lights in parallel. If the 13 lights are identical, which of them will burn brightest?
